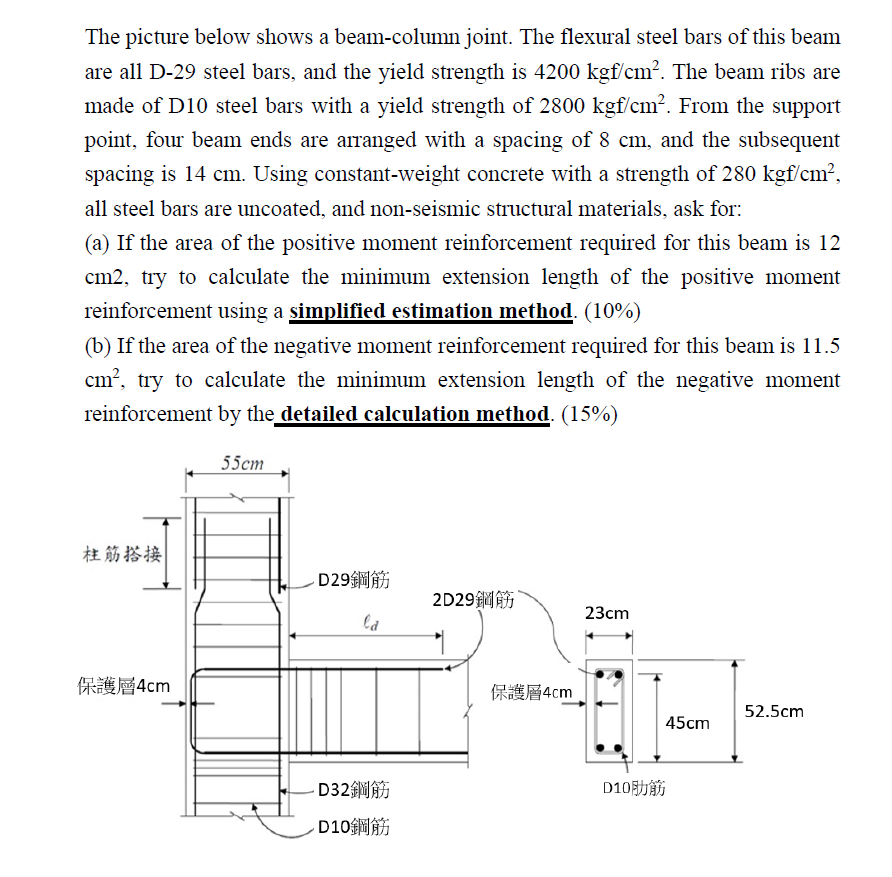

Question: The picture below shows a beam - column joint. The flexural steel bars of this beam are all D - 2 9 steel bars, and

The picture below shows a beam-column joint. The flexural steel bars of this beam are all D-29 steel bars, and the yield strength is 4200kgfcm2. The beam ribs are made of D10 steel bars with a yield strength of 2800kgfcm2. From the support point, four beam ends are arranged with a spacing of 8 cm , and the subsequent spacing is 14 cm . Using constant-weight concrete with a strength of 280kgfcm2, all steel bars are uncoated, and non-seismic structural materials, ask for:
(a) If the area of the positive moment reinforcement required for this beam is 12 cm 2, try to calculate the minimum extension length of the positive moment reinforcement using a simplified estimation method. (10%)
(b) If the area of the negative moment reinforcement required for this beam is 11.5cm2, try to calculate the minimum extension length of the negative moment reinforcement by the detailed calculation method. (15%)
The picture below shows a beam - column joint.
