Topic $7$ and $8$

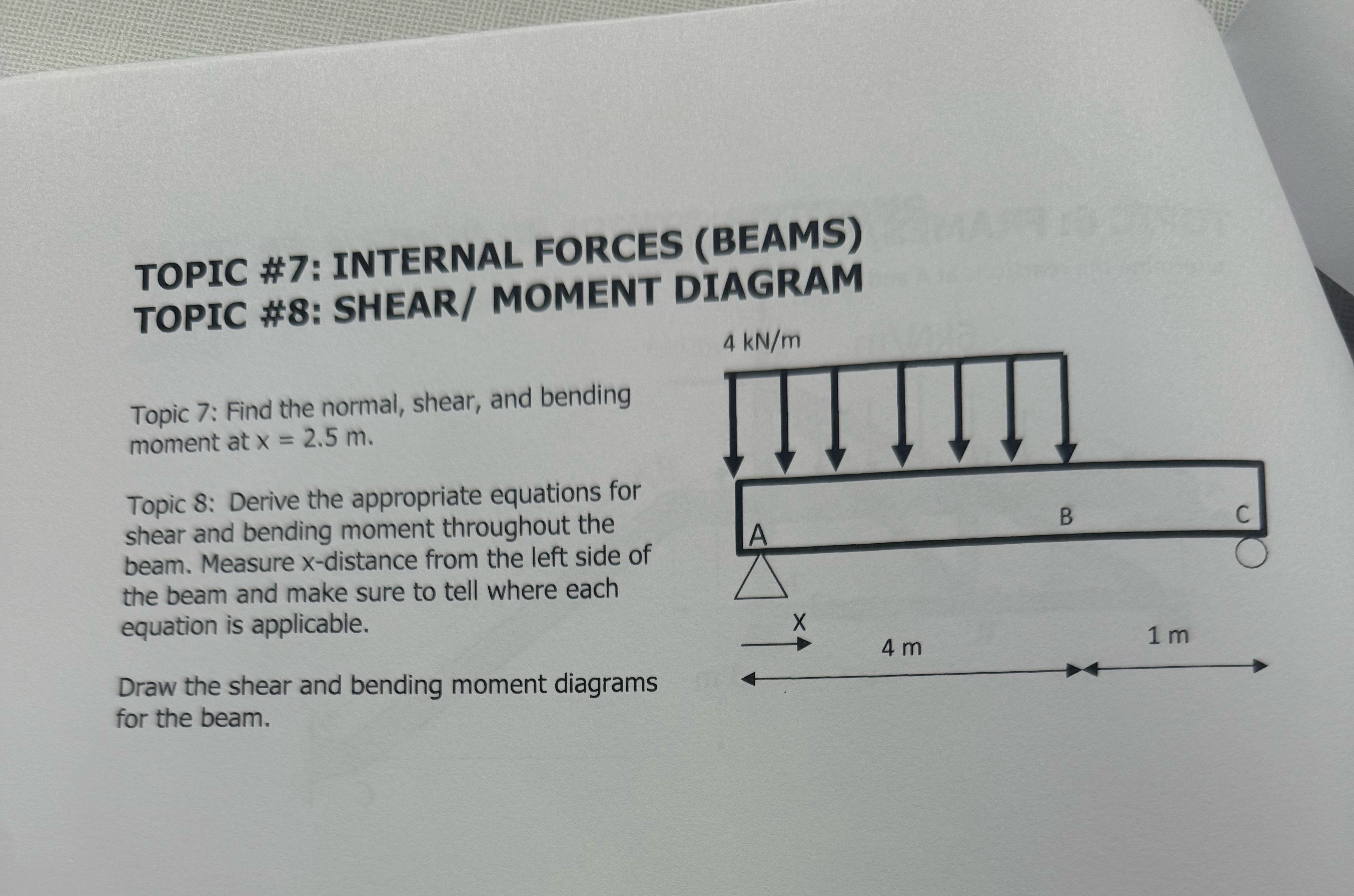

TOPIC #$7$: INTERNAL FORCES $($BEAMS$)$ TOPIC #$8$: SHEAR$/$ MOMENT DIAGRAM

Topic $7$: Find the normal, shear, and bending moment at $x=2\mathrm{.}5m.$

Topic $8$: Derive the appropriate equations for shear and bending moment throughout the beam. Measure $x-$distance from the left side of the beam and make sure to tell where each equation is applicable.

Draw the shear and bending moment diagrams for the beam.
