Question: The pipe system shown above is running by a pump of the following head and efficiency curves. a ) Find system equation. b ) Find

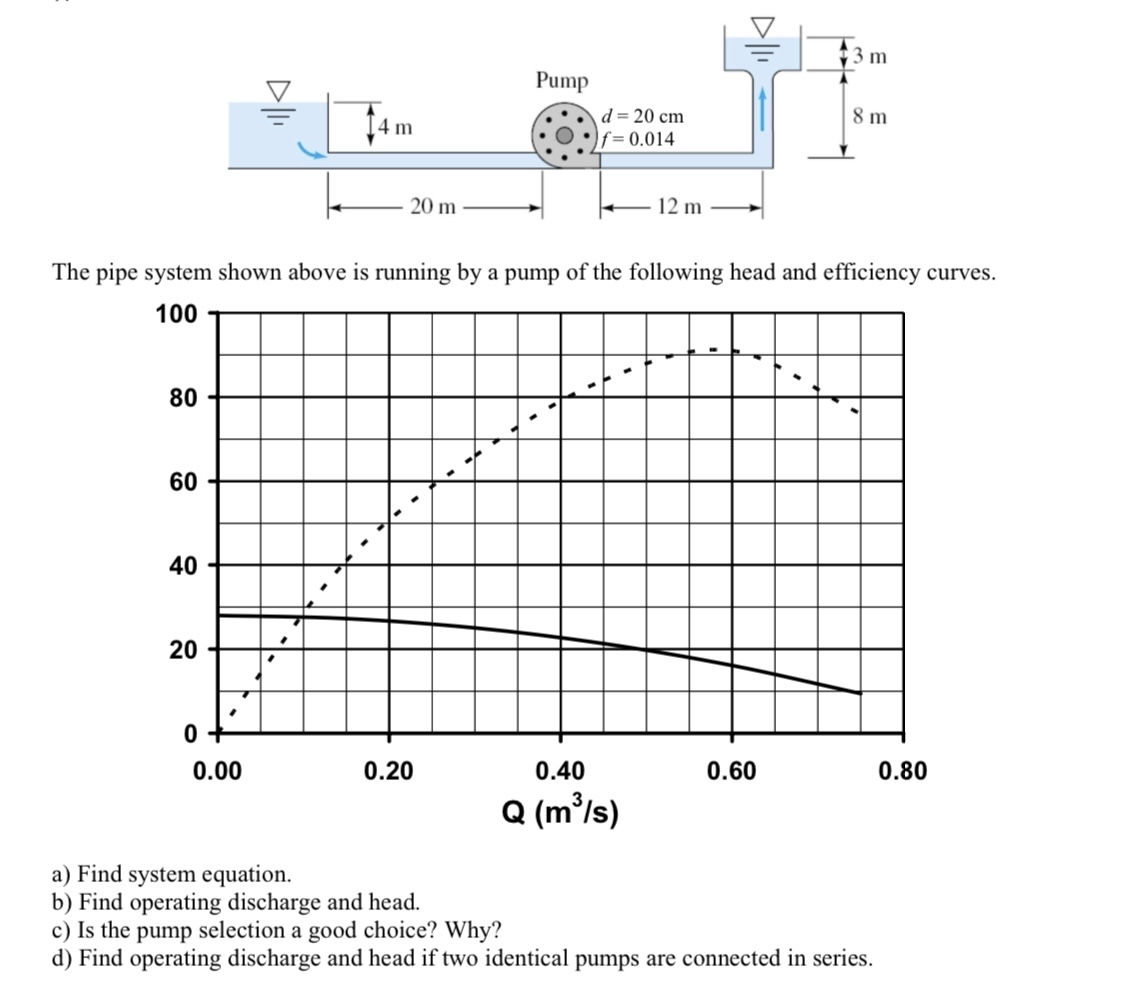

The pipe system shown above is running by a pump of the following head and efficiency curves.
a) Find system equation.
b) Find operating discharge and head.
c) Is the pump selection a good choice? Why?
d) Find operating discharge and head if two identical pumps are connected in series.
The pipe system shown above is running by a pump

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
