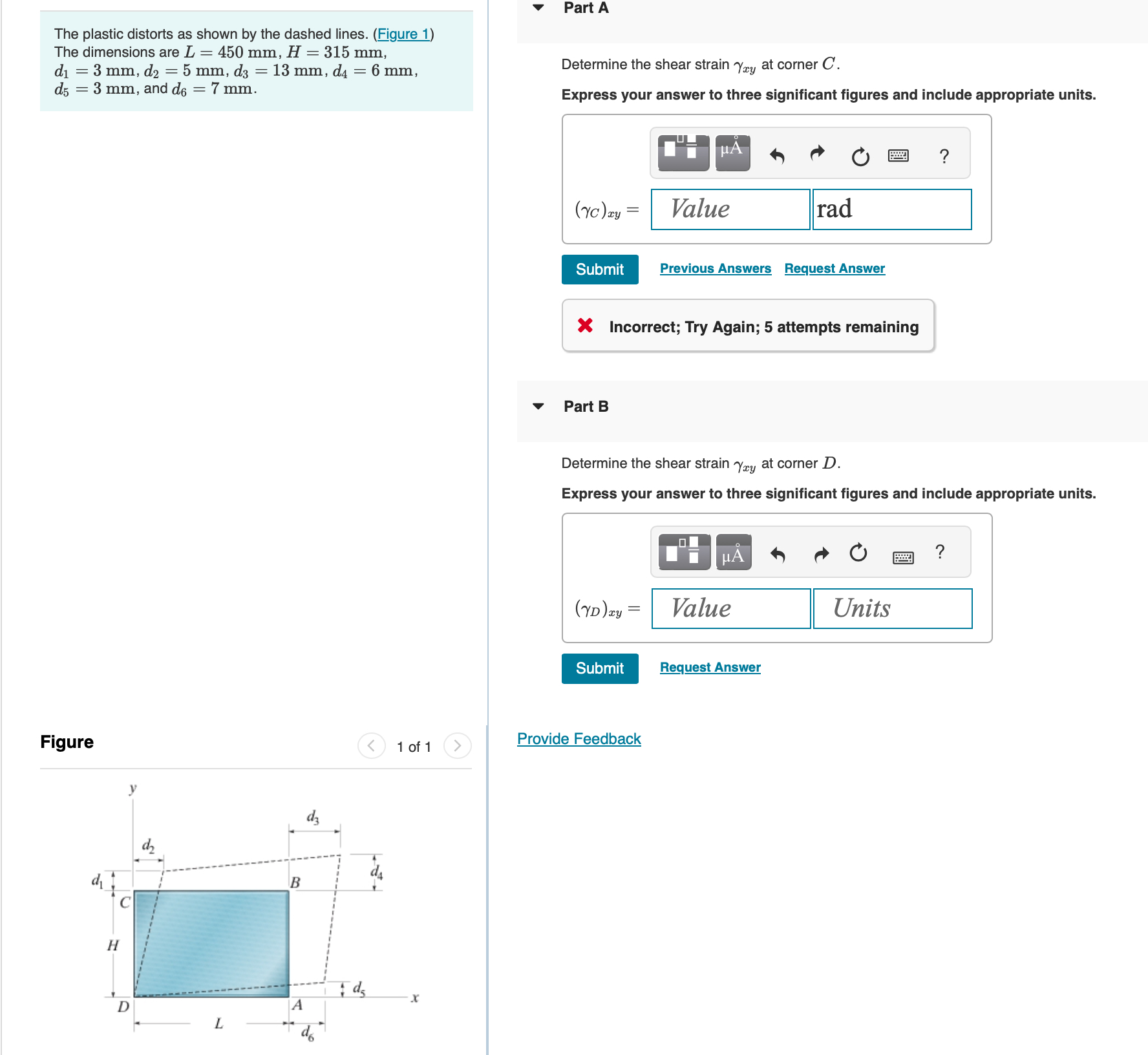

Question: The plastic distorts as shown by the dashed lines. ( Figure 1 ) The dimensions are L = 4 5 0 m m , H

The plastic distorts as shown by the dashed lines. (Figure 1) The dimensions are L=450mm,H=315mm,d1=3mm,d2=5mm,d3=13mm,d4=6mm,d5=3mm, and d6=7mm.
Part A
Determine the shear strain xy at corner C.
Express your answer to three significant figures and include appropriate units.
(C)xy=|,|||
Previous Answers
Incorrect; Try Again; 5 attempts remaining
Part B
Determine the shear strain xy at corner D.
Express your answer to three significant figures and include appropriate units.
Figure
1 of 1
Provide Feedback
The plastic distorts as shown by the dashed

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
