Question: The plastic distorts as shown by the dashed lines. ( Figure 1 ) The dimensions are L = 4 4 0 m m , H

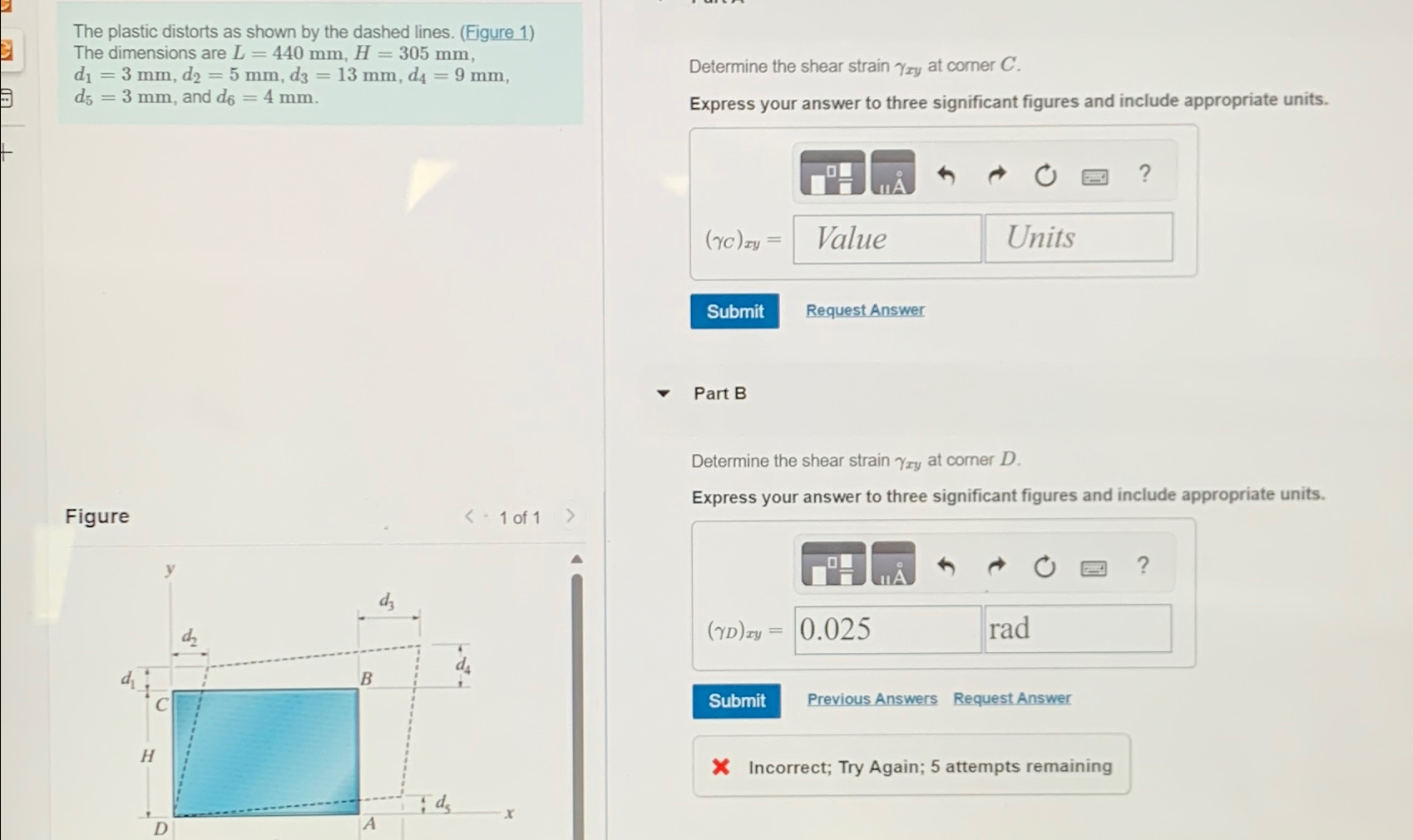

The plastic distorts as shown by the dashed lines. (Figure 1)
The dimensions are L=440mm,H=305mm,d1=3mm,d2=5mm,d3=13mm,d4=9mm,d5=3mm, and d6=4mm.
Figure
1 of 1
The plastic distorts as shown by the dashed

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
