Question: The power system as given below has an operational voltage of 2 2 0 volts. Load one draws 5 0 kilowatts at 0 . 8

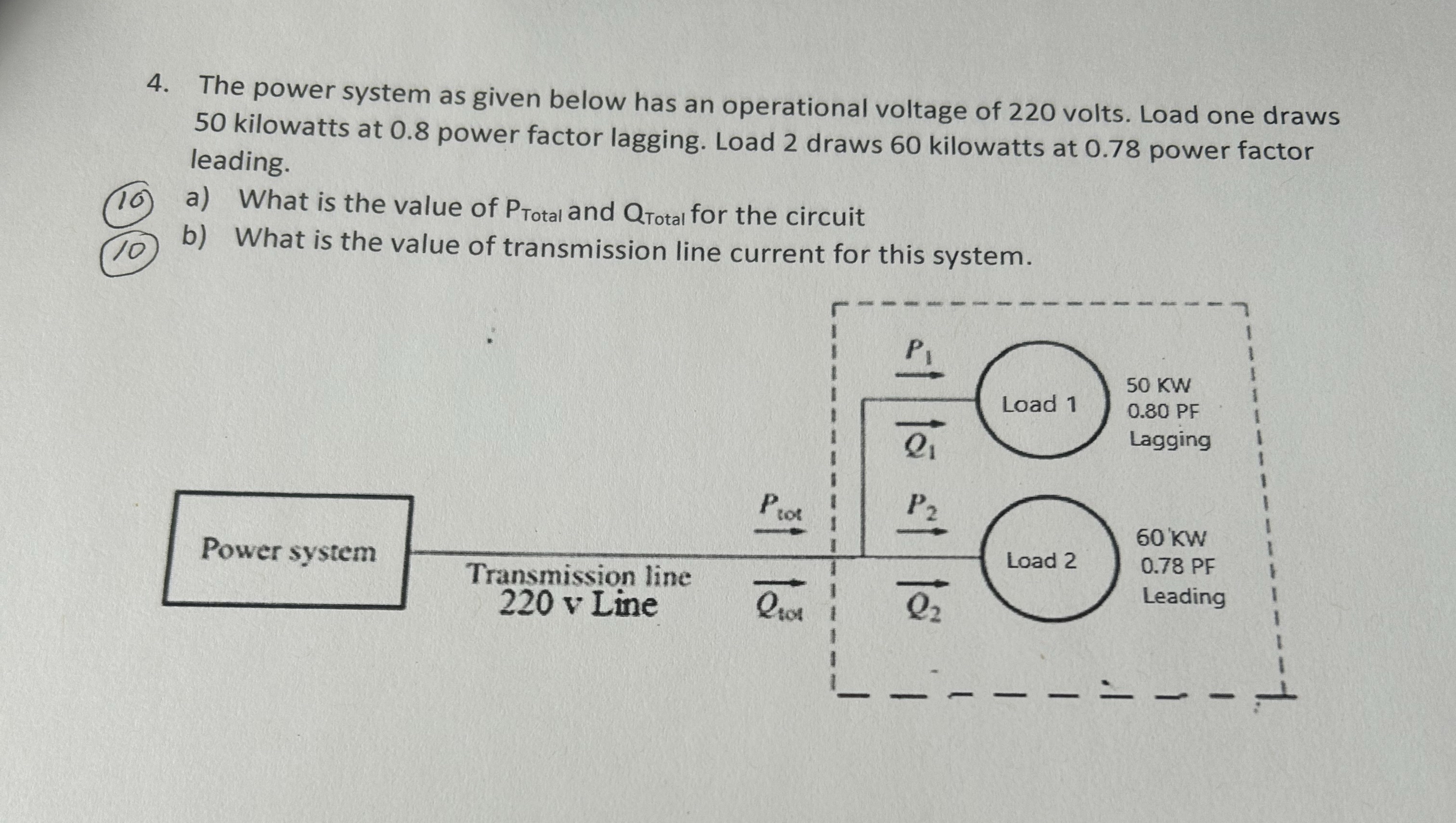

The power system as given below has an operational voltage of 220 volts. Load one draws 50 kilowatts at 0.8 power factor lagging. Load 2 draws 60 kilowatts at 0.78 power factor leading.
(10)
a) What is the value of PTotal and QTotal for the circuit
(10) What is the value of transmission line current for this system.
The power system as given below has an

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
