Question: The pressure at section ( 2 ) shown in the figure below is not to fall below 7 0 psi when the flowrate from the

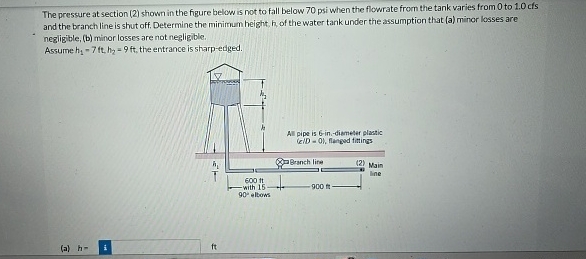

The pressure at section (2) shown in the figure below is not to fall below 70 psi when the flowrate from the tank varies from 0 to 1.0 cfs and the branch line is shut off. Determine the minimum height, h, of the water tank under the assumption that (a) minor losses are negligible, (b) minor losses are not negligible.
Assume h1-7ft,h2=9ft, the entrance is sharp-edged.
(a)h=
i
ft
The pressure at section ( 2 ) shown in the figure

Step by Step Solution

There are 3 Steps involved in it
