the problems must include a neat $($not freehand$)$ labeled sketch of the curve components

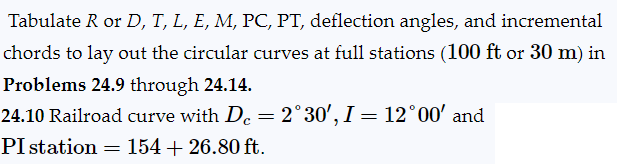

Tabulate $R$ or $D,T,L,E,M,PC,PT,$ deflection angles, and incremental

chords to lay out the circular curves at full stations or $30m)$ in

Problems $24\mathrm{.}9$ through $24\mathrm{.}14.$

$24\mathrm{.}10$ Railroad curve with $D_c=2{30}^{\text{'}},I=12{00}^{\text{'}}$ and

PI station $=154+26\mathrm{.}80ft.$
