Question: The pump shown draws air with a density p = 1.2062 kg/m through the fixed duct A of diameter d = 495 mm with a

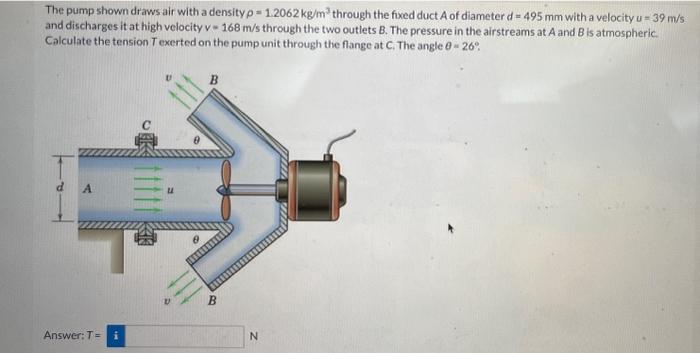

The pump shown draws air with a density p = 1.2062 kg/m through the fixed duct A of diameter d = 495 mm with a velocity u = 39 m/'s and discharges it at high velocity v = 168 m/s through the two outlets B. The pressure in the airstreams at A and B is atmospheric. Calculate the tension T exerted on the pump unit through the flange at C. The angle 0 - 26. B C ZN Answer: T = i N
