Question: The question is coded wrong so flip B and D to the top side of the rail and A and C to the bottom side

The question is coded wrong so flip B and D to the top side of the rail and A and C to the bottom side of the rail so the coded solution aligns with its actual mechanics. Thank you! Required information

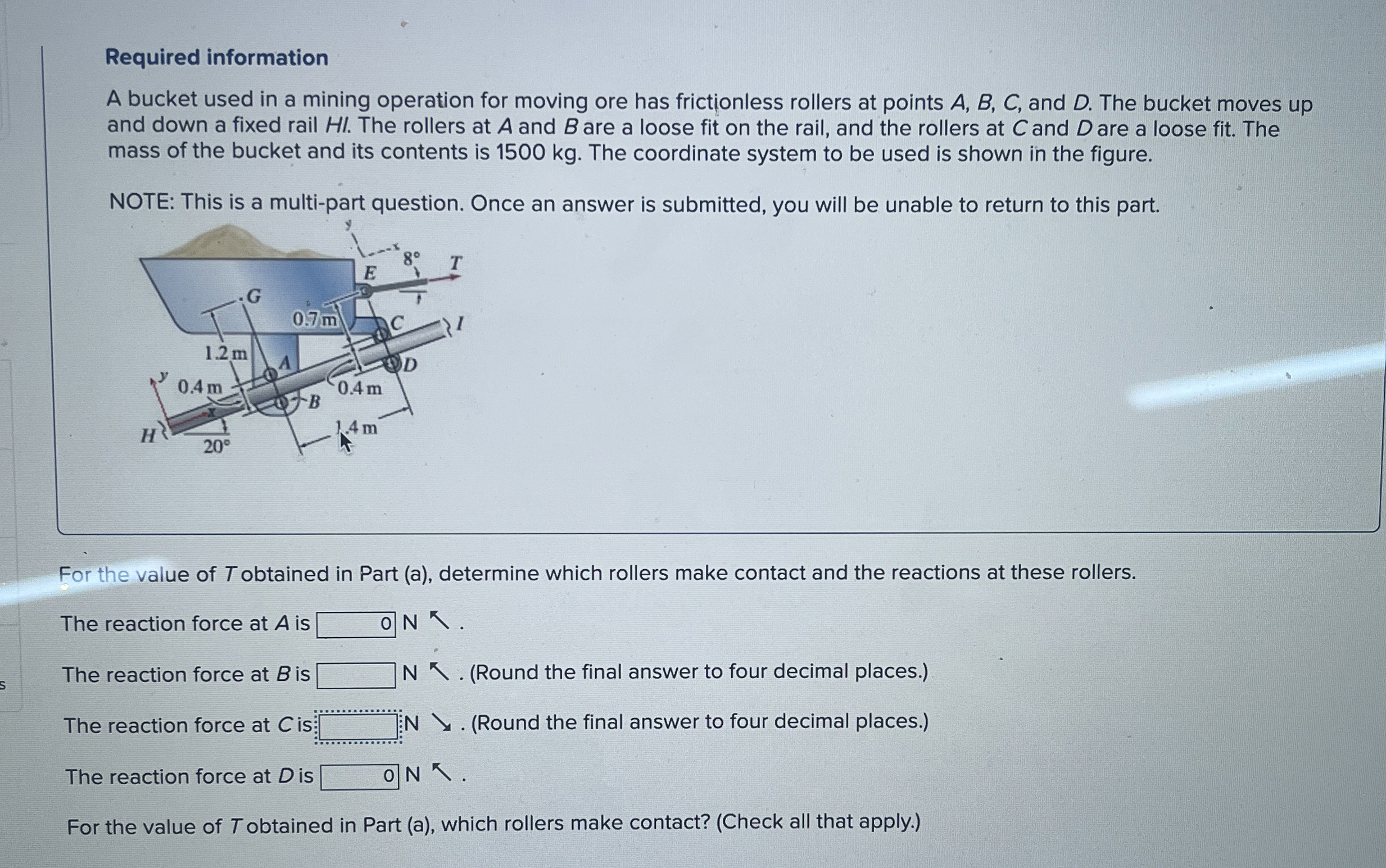

A bucket used in a mining operation for moving ore has frictionless rollers at points A,B,C, and D. The bucket moves up and down a fixed rail H. The rollers at A and B are a loose fit on the rail, and the rollers at C and D are a loose fit. The mass of the bucket and its contents is 1500 kg . The coordinate system to be used is shown in the figure.
NOTE: This is a multi-part question. Once an answer is submitted, you will be unable to return to this part.
For the value of T obtained in Part (a), determine which rollers make contact and the reactions at these rollers.
The reaction force at A is N
The reaction force at B is N .(Round the final answer to four decimal places.)
The reaction force at C is N .(Round the final answer to four decimal places.)
The reaction force at D is N K.
For the value of T obtained in Part (a), which rollers make contact? (Check all that apply.)
The question is coded wrong so flip B and D to
