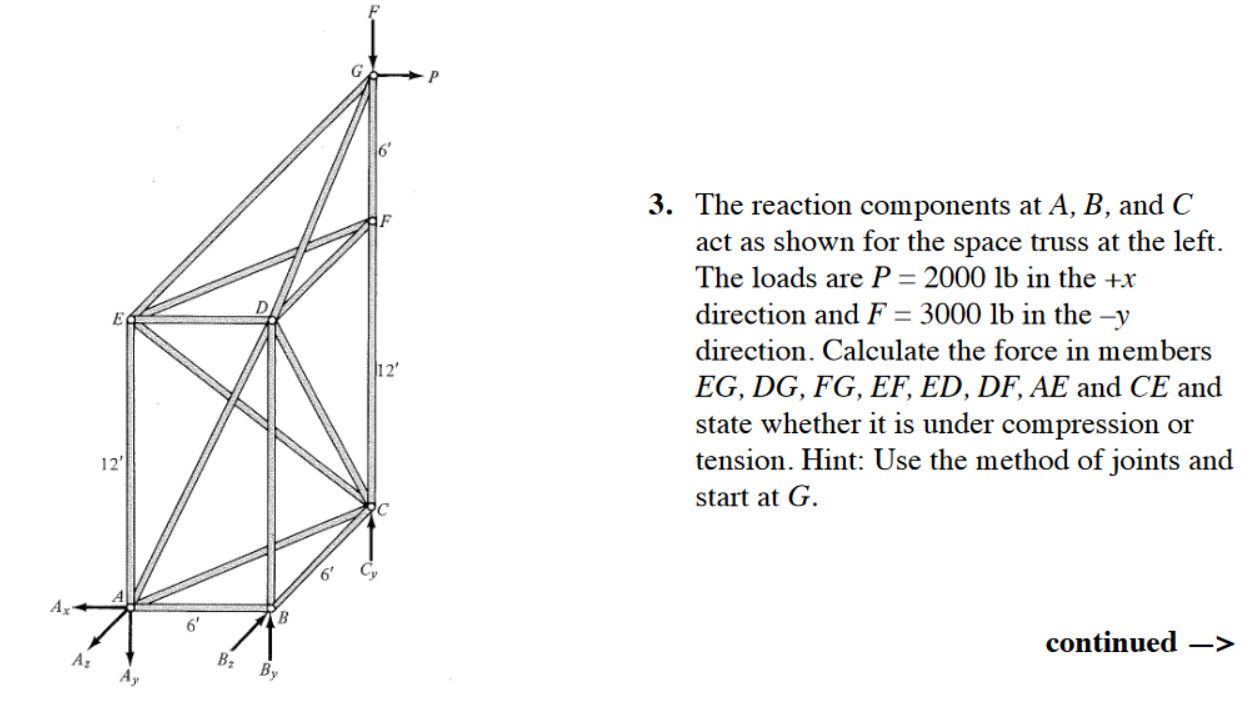

The reaction components at $A,B,$ and $C$

act as shown for the space truss at the left.

The loads are $P=2000lb$ in the $+x$

direction and $F=3000lb$ in the $-y$

direction. Calculate the force in members

$EG,DG,FG,EF,ED,DF,AE$ and $CE$ and

state whether it is under compression or

tension. Hint: Use the method of joints and

start at $G.$

continued longrightarrowThe reaction components at A$,$ B$,$ and C

act as shown for the space truss at the left.

The loads are P $=2000$ lb in the $+$x

direction and F $=3000$ lb in the $$y

direction. Calculate the force in members

EG$,$ DG$,$ FG$,$ EF$,$ ED$,$ DF$,$ AE and CE and

state whether it is under compression or

tension.
