Question: The rectangular bar is connected to the support bracket with a 2 3 - m m - diameter pin. The bar width is w =

The rectangular bar is connected to the support bracket with a 23-mm-diameter pin. The bar width is w=85mm and the bar thickness is 10mm. Each side of the bracket has the same dimensions as the bar. The average shear stress in the pin cannot exceed 105MPa, the bearing stress in the bar cannot exceed 140MPa, and the bearing stress in the bracket cannot exceed 120MPa. Determine the maximum value of Pmax that can be supported by the structure.
Answer: Pmax=kN

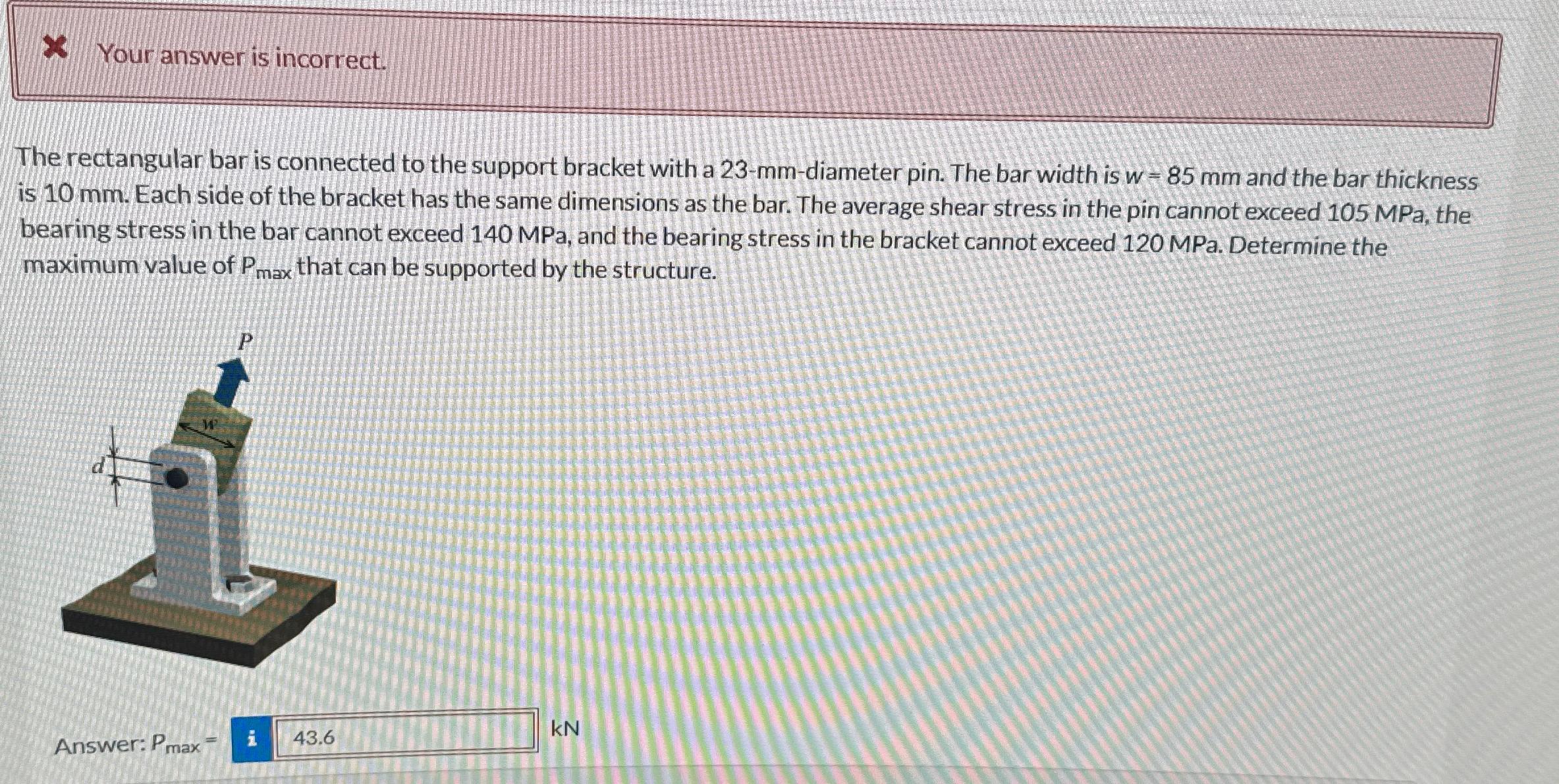

The rectangular bar is connected to the support
