Question: The rectangular plate is deformed into the shape down by the dadhed lines. Suppose that a = 1 8 0 mm and b = 2

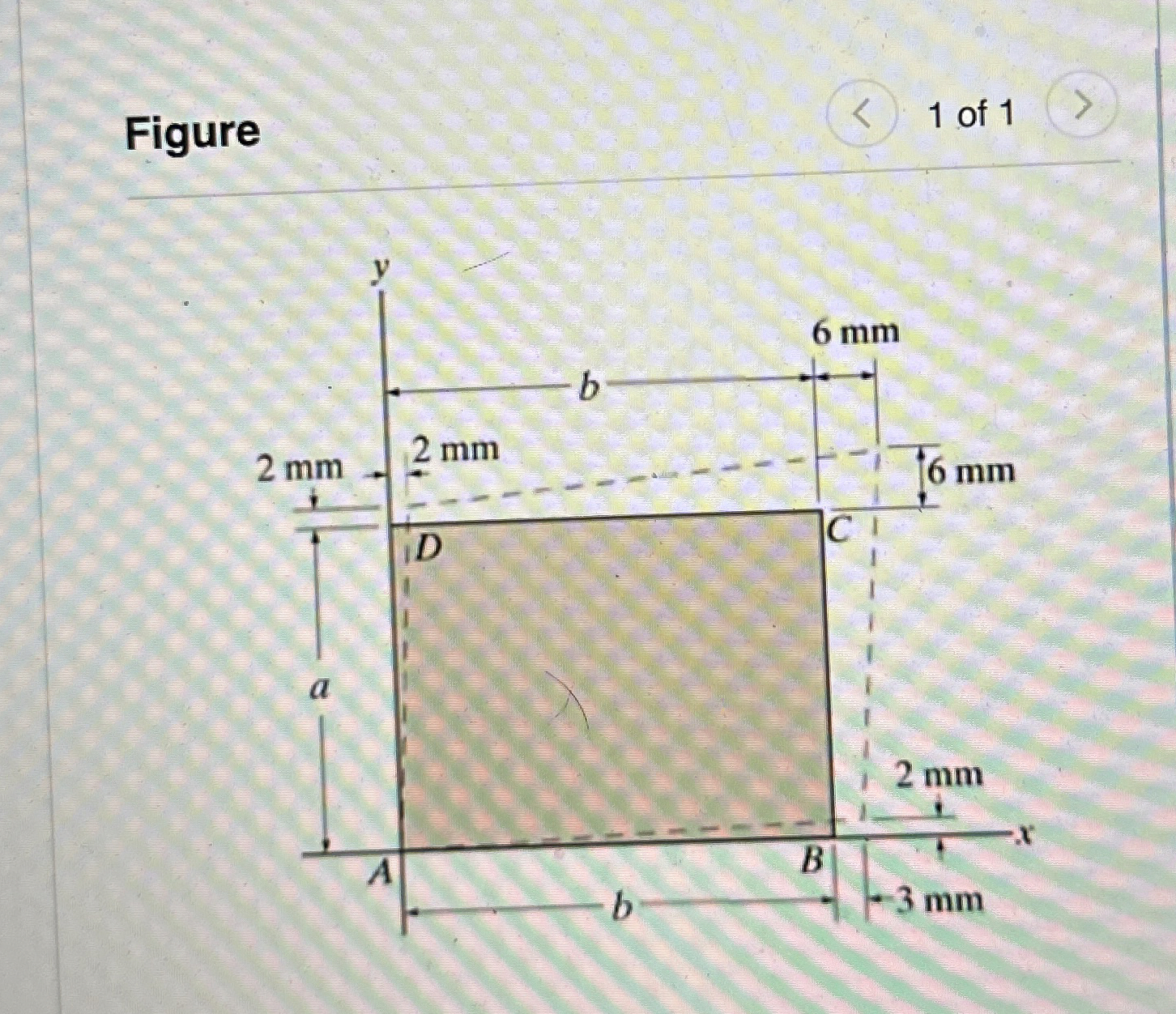

The rectangular plate is deformed into the shape down by the dadhed lines. Suppose that a=180mm and b=240 mm. Determine the average normal stress along diagonal BD. Determine the average shear strain B relative to x,y Axes
The rectangular plate is deformed into the shape

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!

Q:

awnser this question ASAP!!!!!!!!!! The rectangular plate is deformed into the shape shown by the dashed lines. Suppose that a 300 mm and b 420 mm Egure 10 Part A Determine the average normal strain...

Q:

The rectangular plate is deformed into the shape shown by the dashed lines. Suppose that a = 270 mm and b = 360 mm Part A: Determine the average normal strain along diagonal BD. Part B:Determine the...

Q:

The rectangular plate is deformed into the shape shown by the dashed lines. Determine the average normal strain along diagonal AC, and the average shear strain at corner A relative to the x, y axes....

Q:

The rectangular plate is deformed into the shape shown by the dashed lines. Determine the average normal strain along diagonal BD, and the average shear strain at corner B relative to the x, y axes....

Q:

The rectangular plate is deformed into the shape shown by the dashed lines. Suppose that a = 3 0 0 mm and b = 4 0 0 mm . ( Figure 1 ) Determine the average normal strain along diagonal BD . Express...

Q:

2 0/1 point The rectangular plate is deformed into the shape shown by the dashed lines. For a 285 and b = 419, determine the normal strain along the line of AD. [103] (sign sensitive) [unit: mm] (not...

Q:

The rectangular plate is deformed into the shape shown by the dashed lines. For a 272 and b = 426, determine the shear strain at corner C relative to the x, y axes. [103] (sign sensitive) y (unit mm]...

Q:

Problem 7 When force P is applied to the rigid arm ABC , point B displaces vertically,r downward through a distance of 0.2 mm . Determine the normal strain developed in wire CD. Problem 8 If the...

Q:

The square plate is deformed into the shape shown by the dashed lines. If DC has a normal strain x = 0.004, DA has a normal strain y = 0.005 and at D, Y xy = 0.02 rad, determine the average normal...

Q:

Task 5 : The rectangular plate is deformed into the shape of a parallelogram shown by the dashed line. Take a = 3 7 0 m m and b l b = 2 7 0 mm . Determine the average normal strain along edge AD and...
