Question: The rectangular plate is deformed into the shape shown by the dashed lines. Suppose that a = 2 7 0 m m and b =

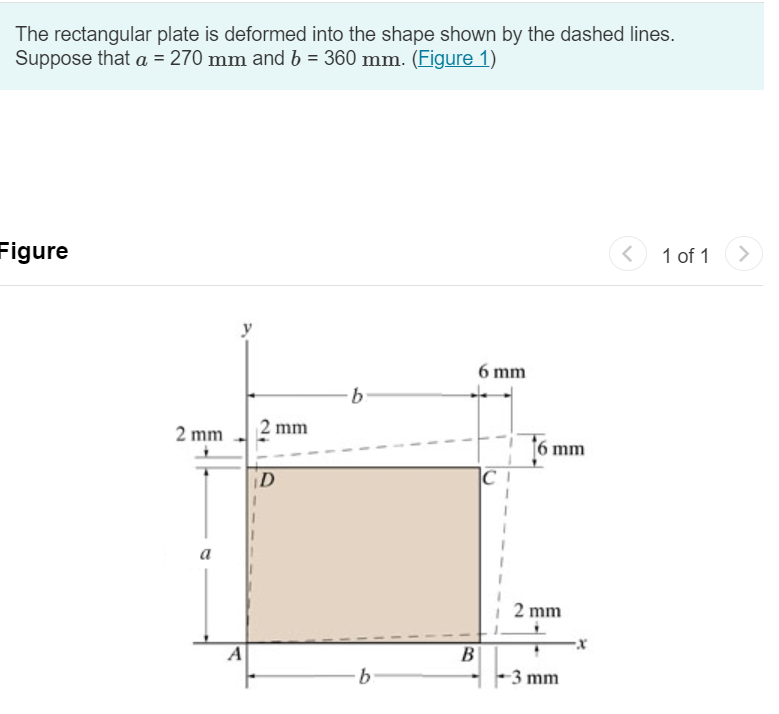

The rectangular plate is deformed into the shape shown by the dashed lines. Suppose that a=270mm and b=360mm.(Figure 1)
figure
1 of 1
Determine the average normal strain along diagonal BD
.
Determine the average shear strain at corner B
relative to the x
, y
axes.
The rectangular plate is deformed into the shape

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
