Question: The shift and add multiplication algorithm discussed in class for the programmable control unit using ROM is shown below. Using this algorithm, show all of

The shift and add multiplication algorithm discussed in class for the

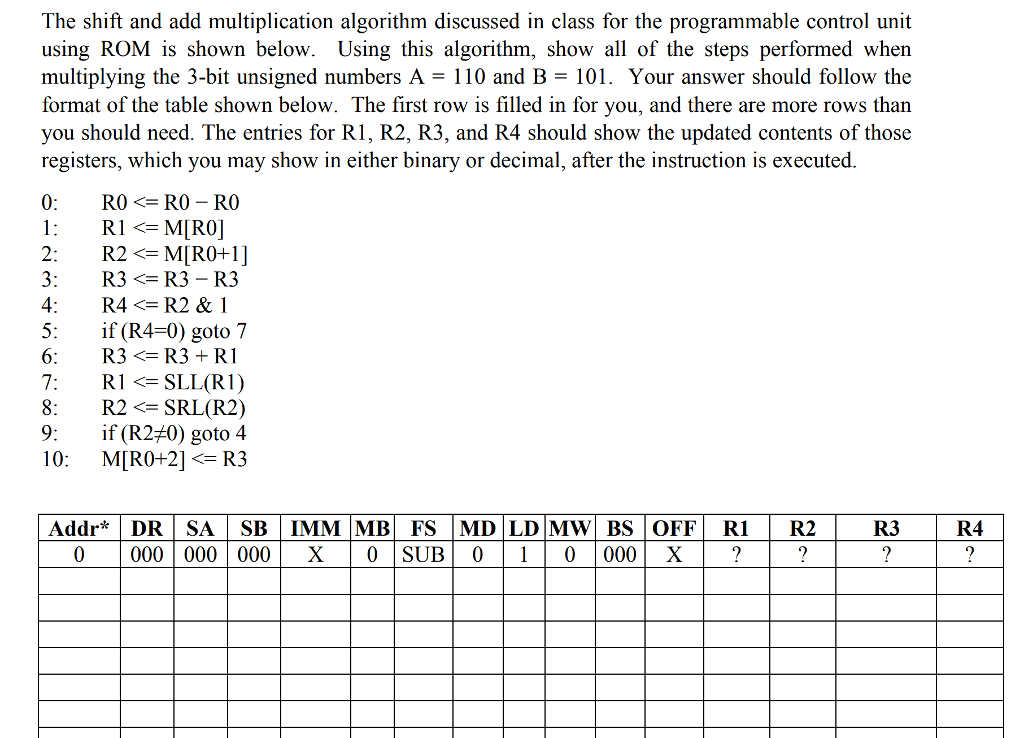

The shift and add multiplication algorithm discussed in class for the programmable control unit using ROM is shown below. Using this algorithm, show all of the steps performed when multiplying the 3-bit unsigned numbers A- 110 and B - 101. Your answer should follow the format of the table shown below. The first row is filled in for you, and there are more rows than you should need. The entries for R1, R2, R3, and R4 should show the updated contents of those registers, which you may show in either binary or decimal, after the instruction is executed RI

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
