Question: The slider block C moves at 9 . 5 m s down the inclined groove. Part A Determine the angular velocity of link A B

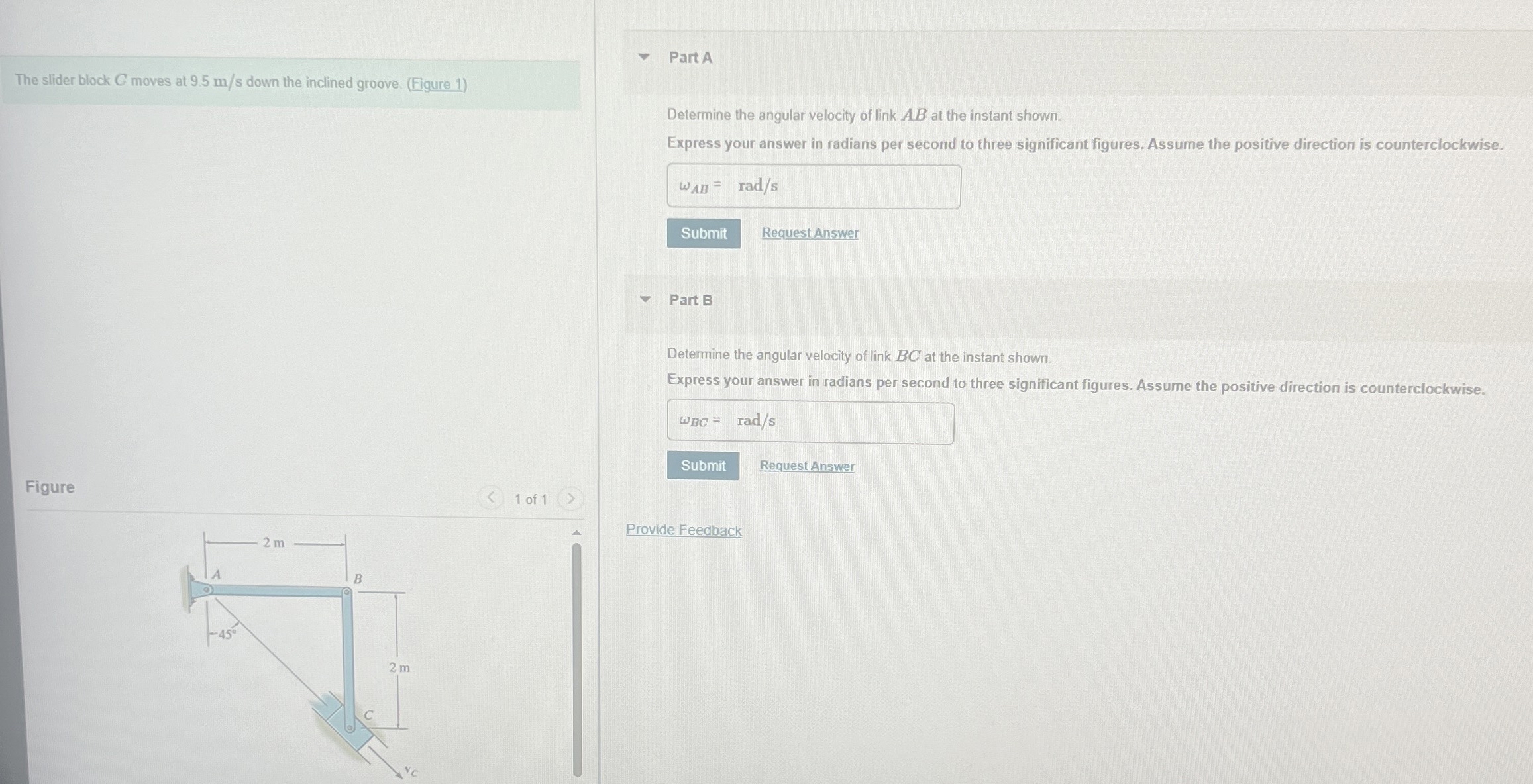

The slider block C moves at 9.5ms down the inclined groove.
Part A
Determine the angular velocity of link AB at the instant shown.
Express your answer in radians per second to three significant figures. Assume the positive direction is counterclockwise.
Part B
Determine the angular velocity of link BC at the instant shown.
Express your answer in radians per second to three significant figures. Assume the positive direction is counterclockwise.
The slider block C moves at 9 . 5 m s down the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

1 6 - 5 8 . When the slider block C is in the position shown, the link A B has a clockwise angular velocity of 2 r a d s . Determine the velocity of block C at this instant. Prob. 1 6 - 5 8 * 1 6 - 6...

Q:

The slider block C moves at 9 . 5 m s down the inclined groove. Determine the angular velocity of link A B at the instant shown measured clockwise. Express your answer using three significant...

Q:

The slider block C moves at 9 . 5 m s down the inclined groove. Determine the angular velocity of link A B at the instant shown measured clockwise. Express your answer using three significant...

Q:

The slider block C moves at 8 m/s down the inclined groove. Determine the angular velocities of links AB and BC, at the instant shown. A -45 2 m B C 2 m Vc = 8 m/s

Q:

(a) Write the definition of general plane motion of a rigid body (b) A slider crank mechanism is shown in Figure Q1. The velocity vc of the slider block C is 4 m/sec up the inclined groove. (i) (ii)...

Q:

Problem 9 The velocity of the slider block C shown is 6 ft/sec up the inclined groove at the instant represented. Using the method of relative velocity, determine the magnitude and direction of the...

Q:

The velocity of the slider block C is v C up the inclined groove. Determine the angular velocity of links AB and BC and the velocity of point B at the instant shown. Given: VC = 4 ft S L = 1 ft
