Question: The soil underneath the base has a friction coefficient ( ) of 0 . 7 2 . 1 . Determine the factor of safety of

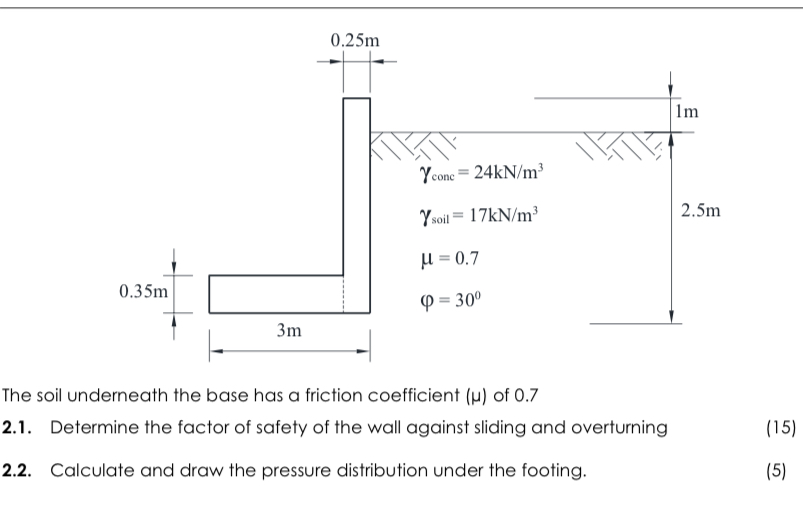

The soil underneath the base has a friction coefficient () of 0.7
2.1. Determine the factor of safety of the wall against sliding and overturning
(15)
2.2. Calculate and draw the pressure distribution under the footing.
(5)
The soil underneath the base has a friction

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
