Question: The solid steel shaft A B has a 4 0 mm diameter. The hollow aluminum shaft BC has a 6 0 mm outside diameter, a

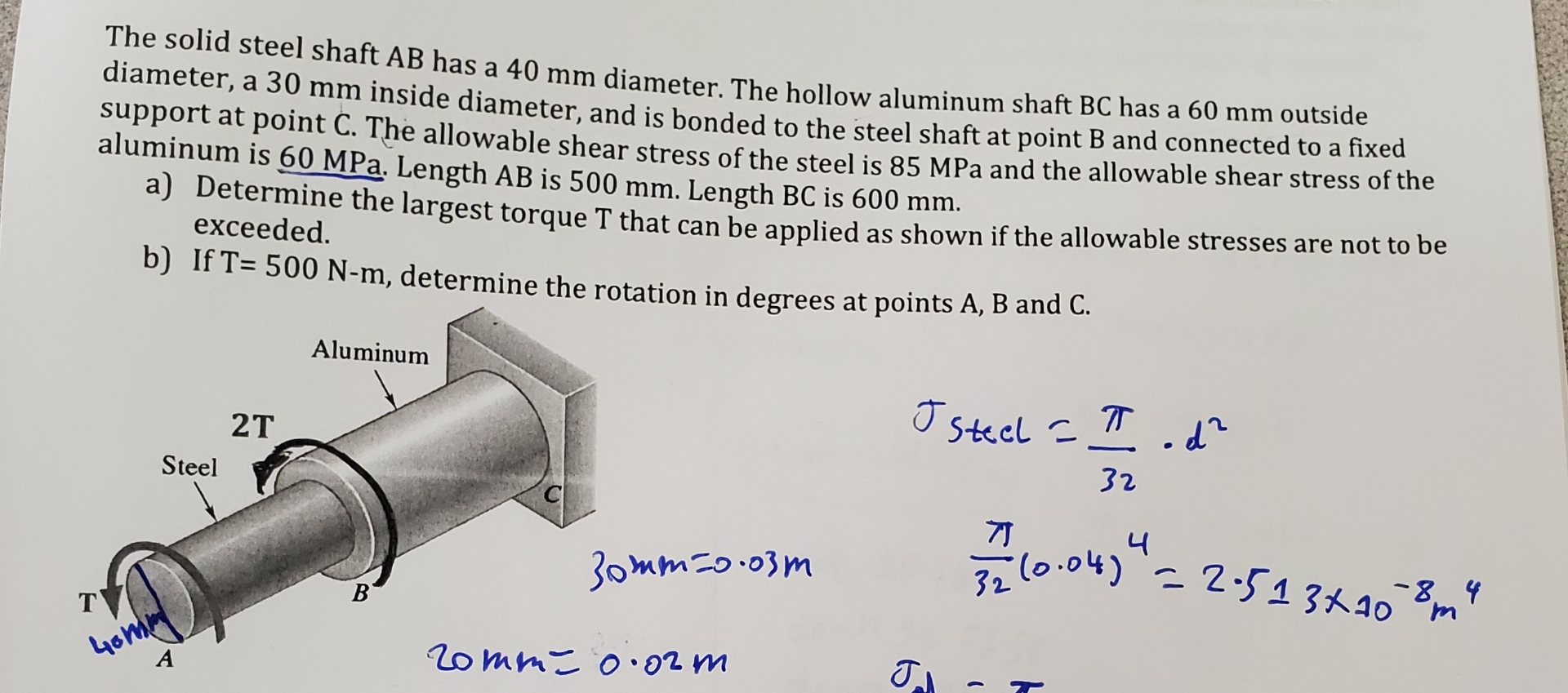

The solid steel shaft AB has a 40 mm diameter. The hollow aluminum shaft BC has a 60 mm outside diameter, a 30 mm inside diameter, and is bonded to the steel shaft at point B and connected to a fixed support at point C. The allowable shear stress of the steel is 85 MPa and the allowable shear stress of the aluminum is 60 MPa . Length AB is 500 mm . Length BC is 600 mm .
a) Determine the largest torque T that can be applied as shown if the allowable stresses are not to be exceeded.
b) If T=500N-m, determine the rntation in degrees at points A,B and C .
The solid steel shaft A B has a 4 0 mm diameter.
