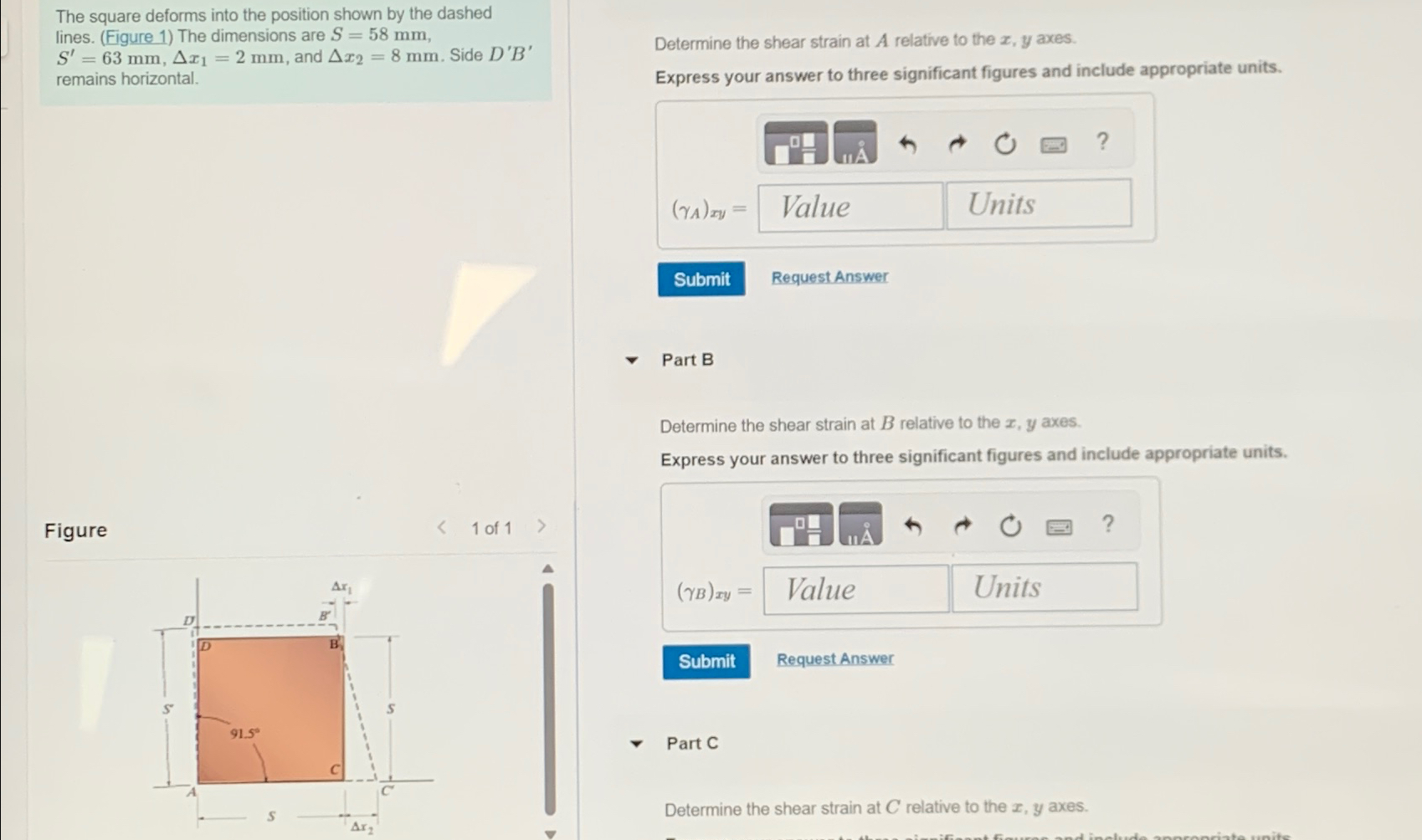

Question: The square deforms into the position shown by the dashed lines. ( Figure 1 ) The dimensions are S = 5 8 m m ,

The square deforms into the position shown by the dashed lines. (Figure 1) The dimensions are S=58mm,S'=63mm,x1=2mm, and x2=8mm. Side D'B' remains horizontal.
Figure
1 of 1
Request Answer
Part C
Determine the shear strain at C relative to the x,y axes.
The square deforms into the position shown by the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
