Question: The state bits are a , b , c . The input set is { A , B } and the output set is {

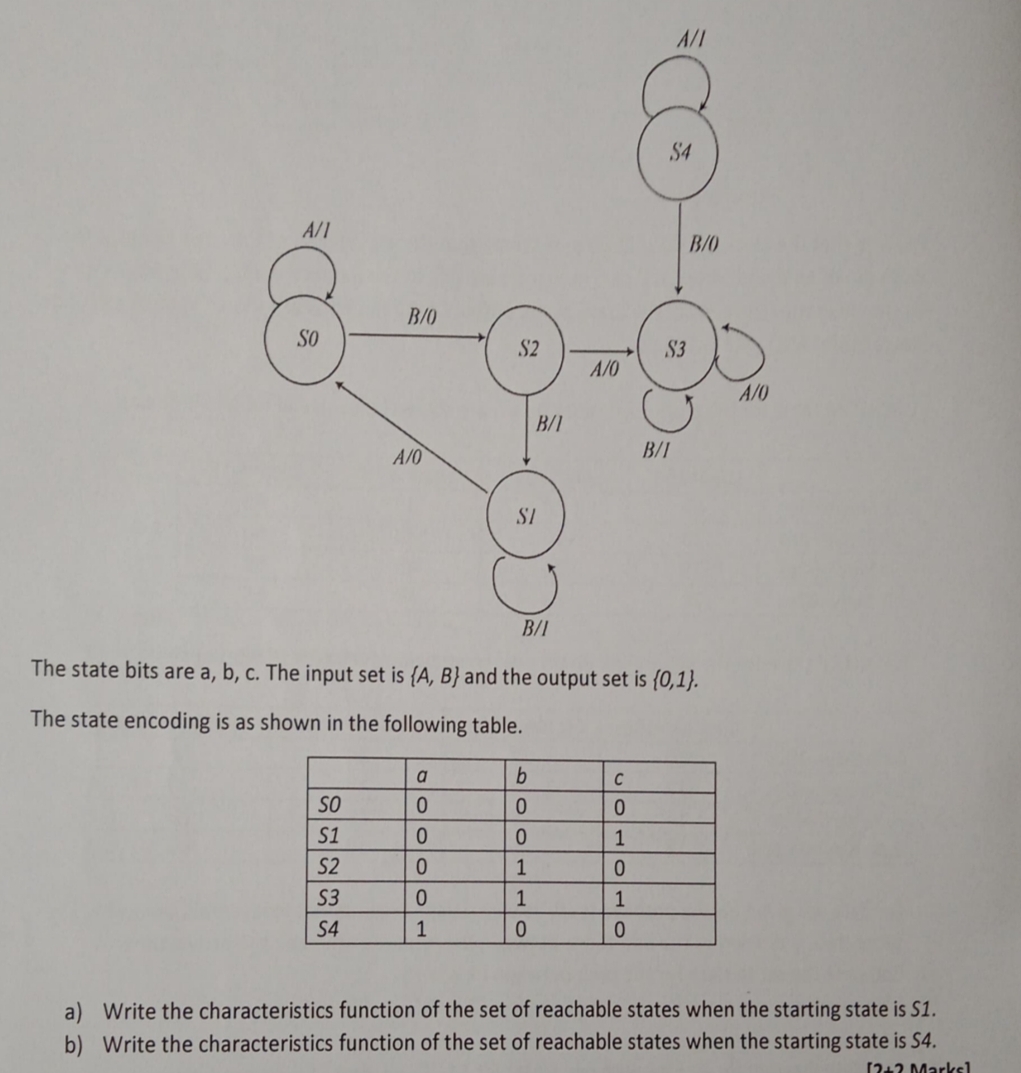

The state bits are a,b,c. The input set is {A,B} and the output set is {0,1}.
The state encoding is as shown in the following table.
\table[[,a,b,c
The state bits are a,b,c. The input set is {A,B} and

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
