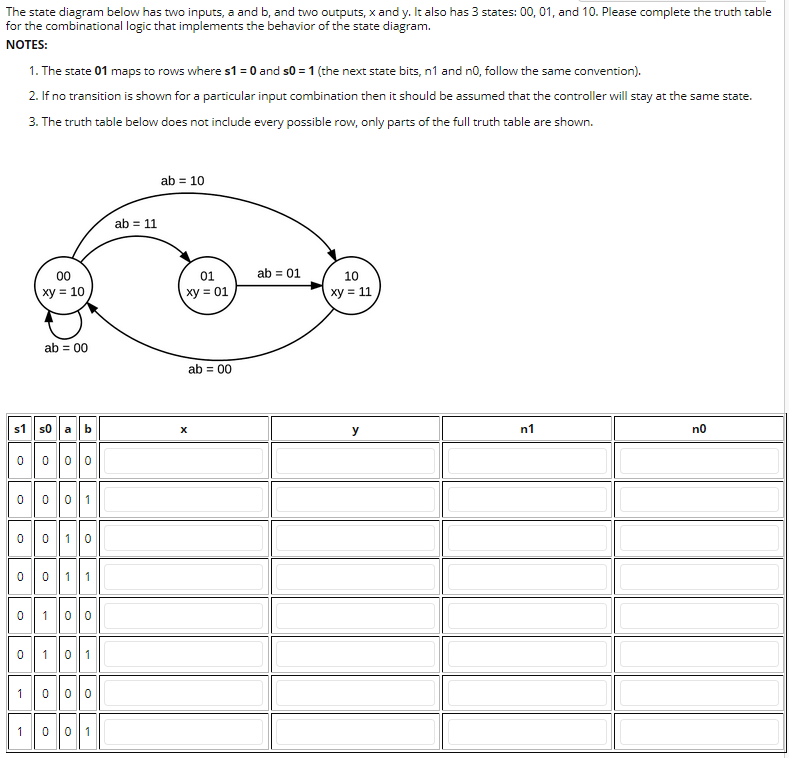

The state diagram below has two inputs, a and b, and two outputs, x and y. It also has 3 states: 00, 01, and 10. Please complete the truth table for the combinational logic that implements the behavior of the state diagram. NOTES: 1. The state 01 maps to rows where s1-0 and s0 1 (the next state bits, ni and n0, follow the same convention). 2. If no transition is shown for a particular input combination then it should be assumed that the controller will stay at the same state 3. The truth table below does not include every possible row, only parts of the full truth table are shown. ab 10 ab 11 ab 01 01 xy01 10 xy 11 xy10 ab 00 ab 00 0 0 0 1
