the subject is computer architecture and organization

section digital logic design

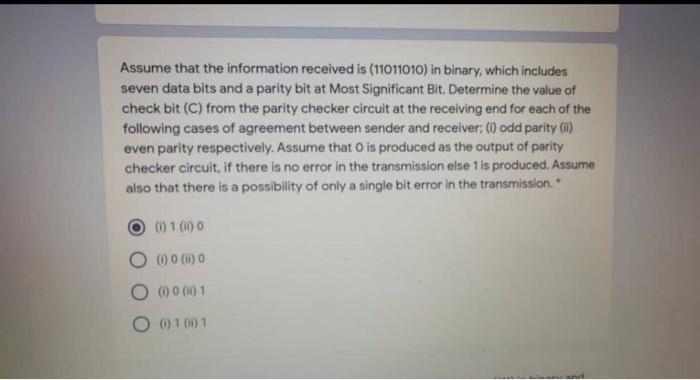

Assume that the information received is (11011010) in binary, which includes seven data bits and a parity bit at Most Significant Bit. Determine the value of check bit (C) from the parity checker circuit at the receiving end for each of the following cases of agreement between sender and receiver: (1) odd parity () even parity respectively. Assume that is produced as the output of parity checker circuit, if there is no error in the transmission else 1 is produced. Assume also that there is a possibility of only a single bit error in the transmission.. (1) 1 (11) (0) 0 (11) 0 0 (0) 1 O 01011
