Question: The tide gate opens automatically when the tide water at B subsides, allowing the marsh at A to drain. The water level is h =

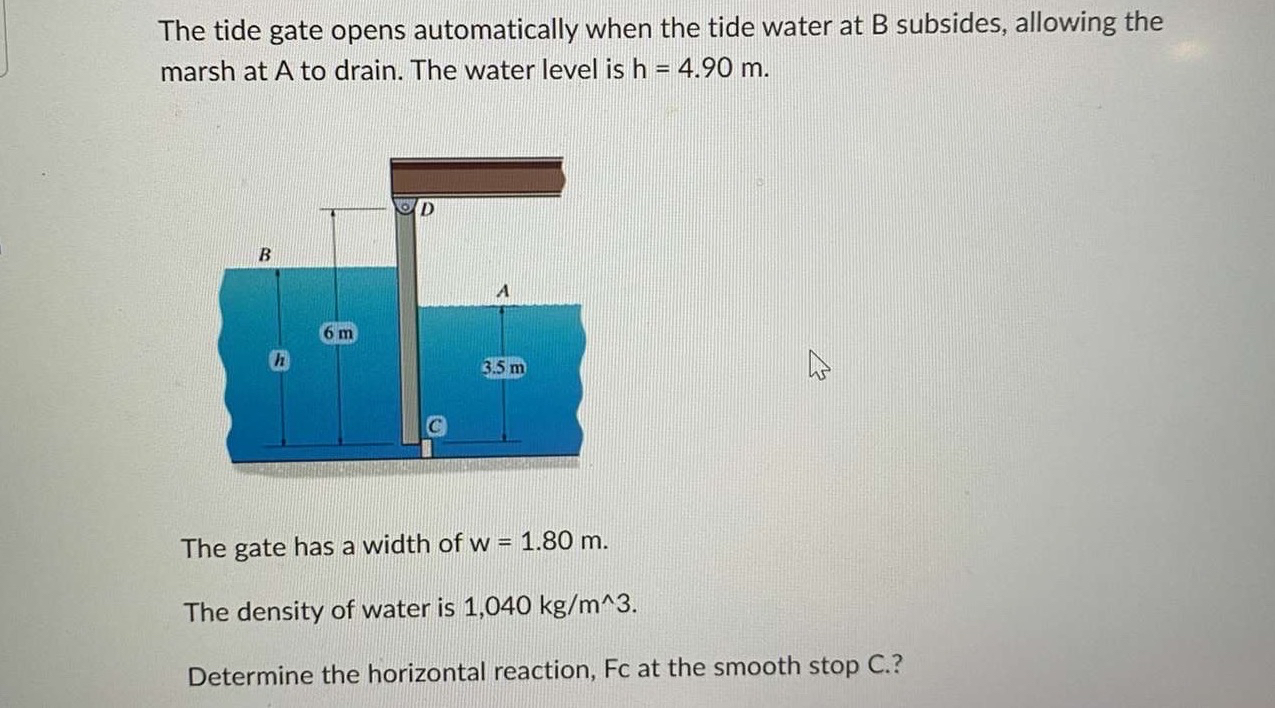

The tide gate opens automatically when the tide water at B subsides, allowing the marsh at A to drain. The water level is h=4.90m.
The gate has a width of w=1.80m.
The density of water is 1,040kgm3.
Determine the horizontal reaction, Fc at the smooth stop C.?
The tide gate opens automatically when the tide

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
