Question: The triangular plate, having a 9 0 angle at A , supports the load P = 2 2 0 l b as shown in (

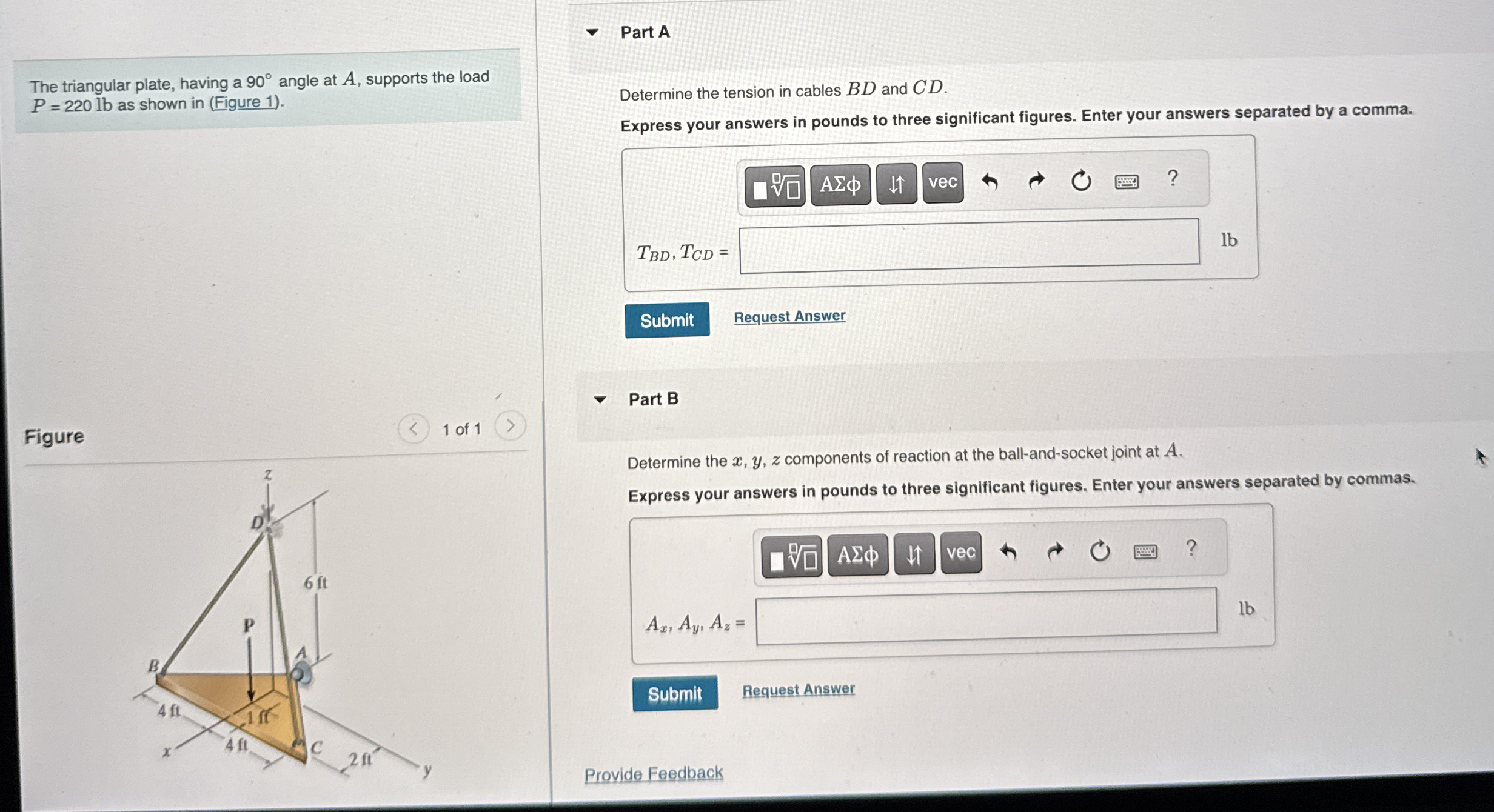

The triangular plate, having a 90 angle at A, supports the load P=220lb as shown in (Figure 1).
Figure
1 of 1
Part B
Determine the x,y,z components of reaction at the ball-and-socket joint at A.
Express your answers in pounds to three significant figures. Enter your answers separated by commas.
Ax,Ay,Az=
Provide Feedback
The triangular plate, having a 9 0 angle at A ,

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
