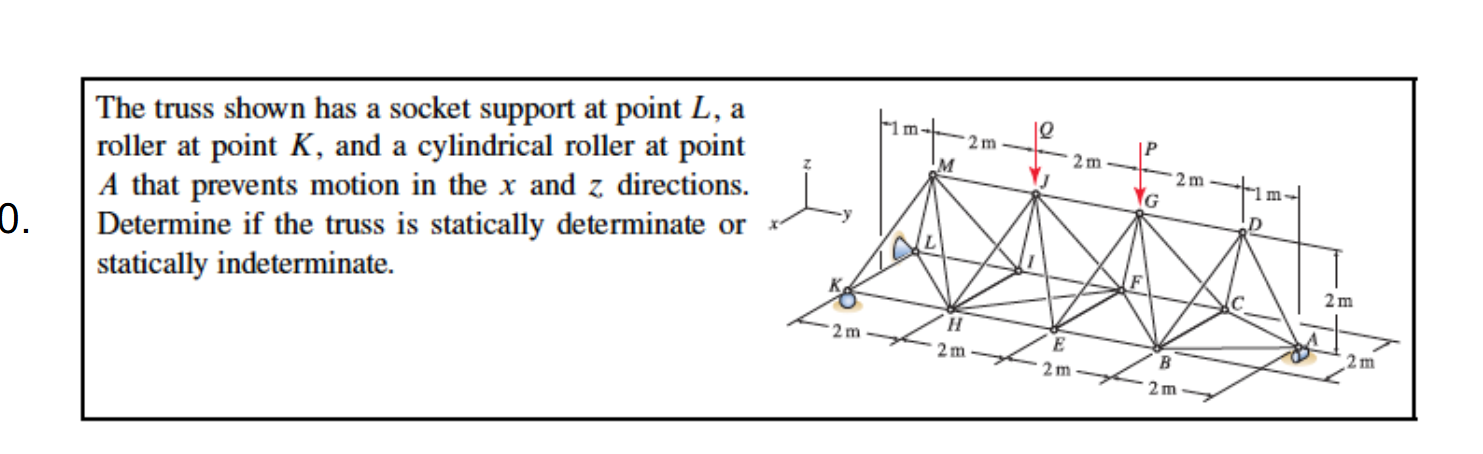

Question: The truss shown has a socket support at point L , a roller at point K , and a cylindrical roller at point A that

The truss shown has a socket support at point L

,

a roller at point K

,

and a cylindrical roller at point A that prevents motion in the x and z directions. Determine if the truss is statically determinate or statically indeterminate.

The truss shown has a socket support at point L ,

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
