Question: The truth table for a Boolean expression is shown below: Write the Boolean expression for F in sum - of - products form. Write a

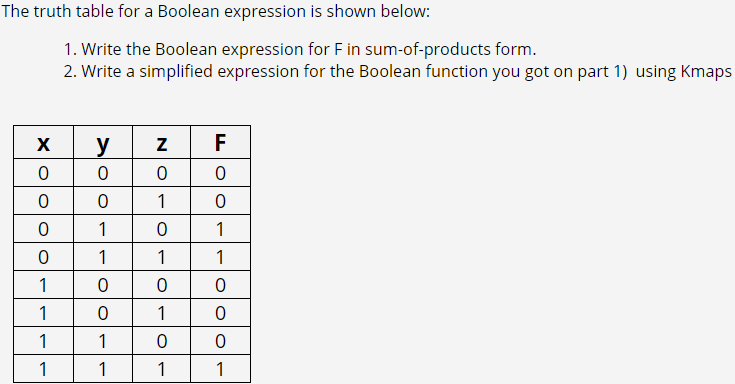

The truth table for a Boolean expression is shown below:
Write the Boolean expression for F in sum-of-products form.
Write a simplified expression for the Boolean function you got on part 1) using Kmaps
The truth table for a Boolean expression is shown

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Programming Questions!

Q:

The truth table for a Boolean expression is shown below. Write the Boolean expression in sum of products form. x y z F 0 0 0 1 0 0 1 0 0 1 0 1 0 1 1 0 1 0 0 0 1 0 1 1 1 1 0 1 1 1 1 1
