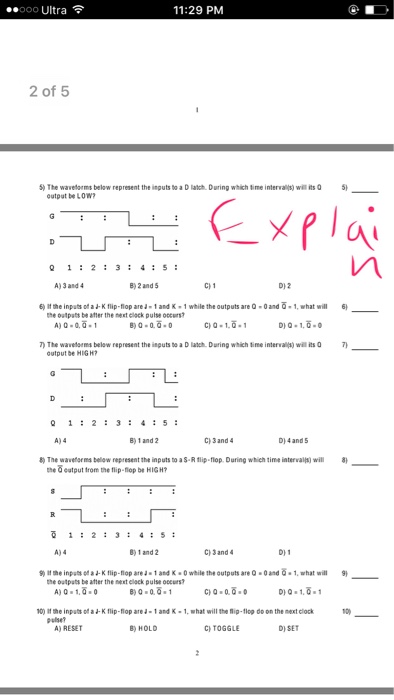

The waveforms below represent the inputs to a D latch. During which time interval(s) will its Q output be LOW? 3 and 4 2 and 5 1 2 If the inputs of a J-K flip-flop are J = 1 and K = 1 while the outputs are Q = 0 and Q^bar = 1, what will the outputs be after the next clock pulse occurs? Q = 0, Q^bar = 1 Q = 0, Q^bar = 0 Q = 1, Q^bar = 1 Q = 1, Q^bar = 0 The waveforms below represent the inputs to a D latch. During which time interval(s) will its Q output be HIGH? 4 1 and 2 3 and 4 4 and 5 The waveforms below represent the inputs to a S-R flip-flop. During which time interval(s) will its Q^bar output from the flip-flop be HIGH? 4 1 and 2 3 and 4 1 If the input of a J-K flip-flop are J = 1 and K = 0 while the outputs are Q = 0 and Q^bar = 1, what will the outputs be after the next clock pulse occurs? Q = 1, Q^bar = 0 Q = 0, Q^bar = 1 Q = 0, Q^bar = 0 Q = 1, Q^bar = 1 If the inputs of a J-K flip-flop are J = 1 and K = 1, what will the flip-flop do on the next clock pulse? RESET HOLD TOGGLE SET
