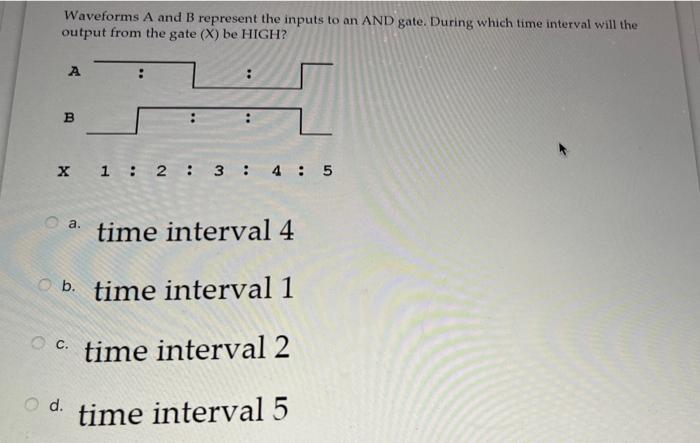

Question: Waveforms A and B represent the inputs to an AND gate. During which time interval will the output from the gate (X) be HIGH? a.

HIGH? a. time interval 4 b. time interval 1 c. time interval

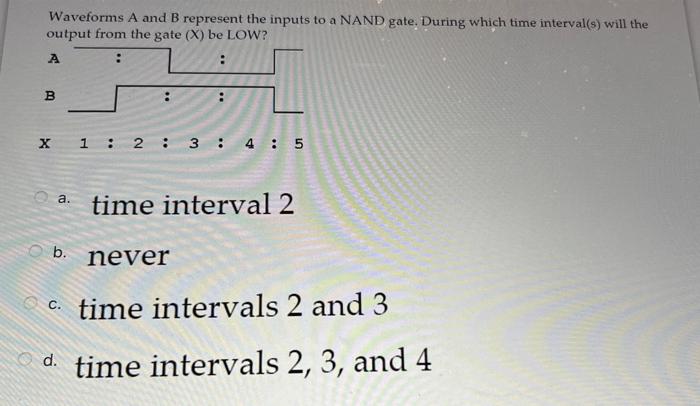

Waveforms A and B represent the inputs to an AND gate. During which time interval will the output from the gate (X) be HIGH? a. time interval 4 b. time interval 1 c. time interval 2 time interval 5 Waveforms A and B represent the inputs to a NAND gate. During which time interval(s) will the output from the gate (X) be LOW? a. time interval 2 b. never c. time intervals 2 and 3 d. time intervals 2,3 , and 4 Waveforms A and B represent the inputs to an OR gate. During which time interval(s) will the output from the gate (X) be HIGH? time intervals 3 and 5 b. never c. time interval 4 dime intervals 2 and 3
