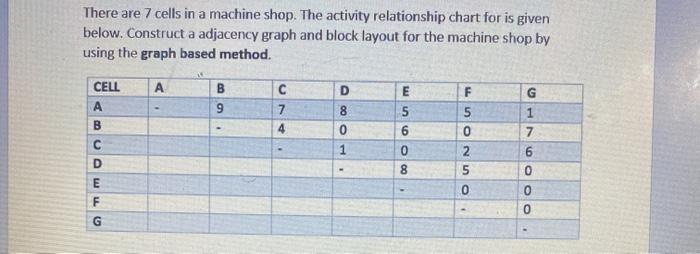

Question: There are 7 cells in a machine shop. The activity relationship chart for is given below. Construct a adjacency graph and block layout for the

There are 7 cells in a machine shop. The activity relationship chart for is given below. Construct a adjacency graph and block layout for the machine shop by using the graph based method. B D CELL A F G 7 9 8 E 5 6 B 0 U O 5 0 2 5 1 0 1 7 6 0 0 0 8 0 E F G There are 7 cells in a machine shop. The activity relationship chart for is given below. Construct a adjacency graph and block layout for the machine shop by using the graph based method. B D CELL A F G 7 9 8 E 5 6 B 0 U O 5 0 2 5 1 0 1 7 6 0 0 0 8 0 E F G

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
