These are MIPS questions

. Encodig/Decoding

1. Provide the type and assembly language instruction for the following binary value: 0000 0010 0001 0000 1000 0000 0010 0000_two
2. Provide the type and hexadecimal representation of following instruction: sw $t1, 32($t2)

II. Logical Operations

Assume the following register contents:

$t0 = 0xAAAAAAAA, $t1 = 0x12345678

1. For the register values shown above, what is the value of $t2 for the following sequence of instructions? sll $t2, $t0, 4 andi $t2, $t2, -1
2. For the register values shown above, what is the value of $t2 for the following sequence of instructions? srl $t2, $t0, 3 andi $t2, $t2, 0xFFEF

III. Control Flows

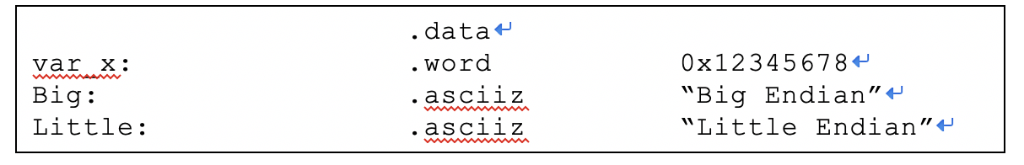

1. Write a MIPS program code to Print Big endian if machine is big endian, otherwise print Little endian. Assume that an integer variable x is declared in Memory like

(Hint: la $reg, var_x # load address of var_x)

Translate the following C code to MIPS assembly code. Use a minimum number of instructions. Assume that the values of a, b, i, and j are in registers $s0, $s1, $t0, and $t1, respectively. Also, assume that register $s2 holds the base address of the integer array D.

. data+ .word 0x12345678 var x: Big: Little: Big Endian"+ "Little Endian" asciiz for(i 0i
