Question: This digital logic problem was solved at least partially incorrectly. How would it be solved correctly? Consider the RAM circuit shown below Note: ' b

This digital logic problem was solved at least partially incorrectly. How would it be solved correctly?

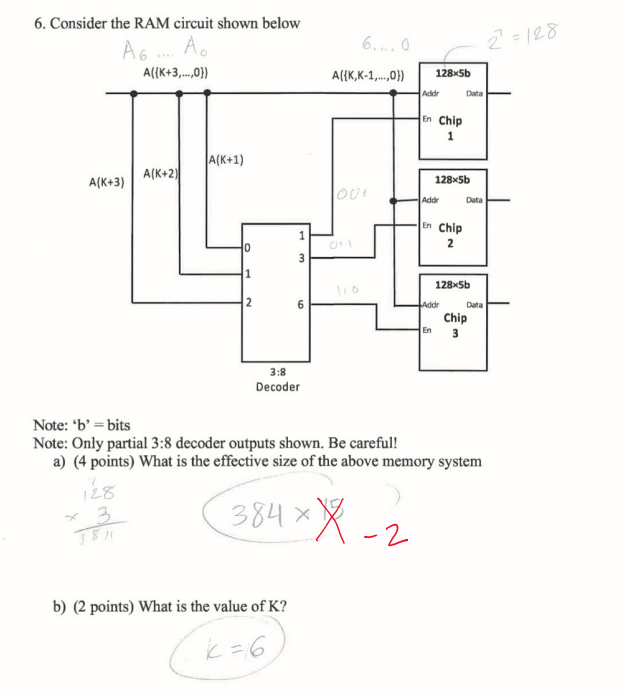

Consider the RAM circuit shown below
Note: 'b'= bits
Note: Only partial 3:8 decoder outputs shown. Be careful!
a)(4 points) What is the effective size of the above memory system
b)(2 points) What is the value of K ? c)(4 points) What is the address range for each chip in binary?
