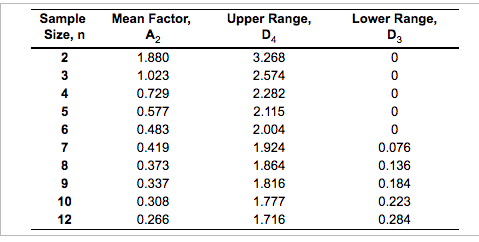

^^^^ This is the Table 6S.1 Factors Computing Control Charts Limit mentioned above

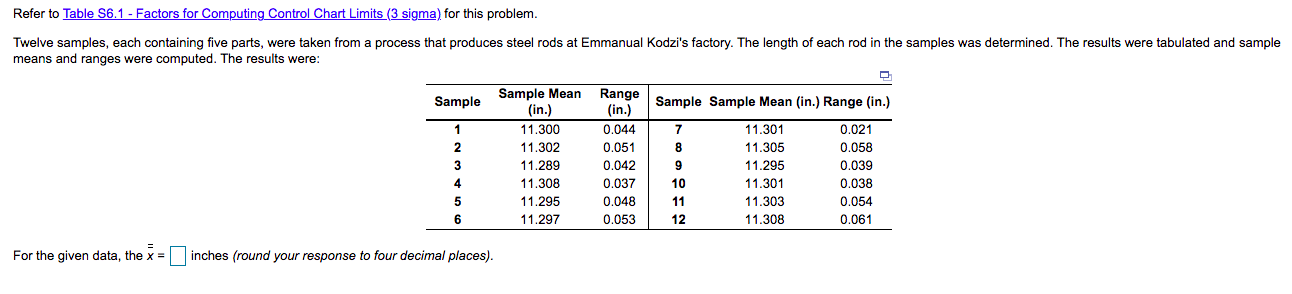

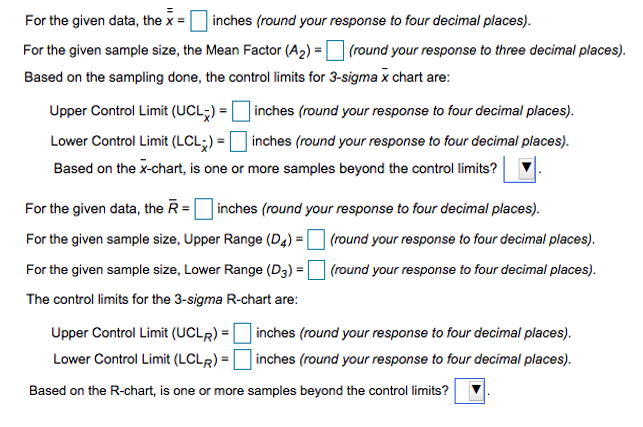

Refer to Table 56.1 - Factors for Computing Control Chart Limits (3 sigma) for this problem. Twelve samples, each containing five parts, were taken from a process that produces steel rods at Emmanual Kodzi's factory. The length of each rod in the samples was determined. The results were tabulated and sample means and ranges were computed. The results were: Sample 2 Sample Mean (in.) 11.300 11.302 11.289 11.308 11.295 11.297 Range (in.) 0.044 0.051 0.042 0.037 0.048 0.053 3 4 5 6 Sample Sample Mean (in.) Range (in.) 7 11.301 0.021 8 11.305 0.058 9 11.295 0.039 10 11.301 0.038 11 11.303 0.054 12 11.308 0.061 For the given data, the x = inches (round your response to four decimal places). | Sample Size, n 2 3 4 5 6 7 7 8 9 10 12 Mean Factor, AZ 1.880 1.023 0.729 0.577 0.483 0.419 0.373 0.337 0.308 0.266 Upper Range, DA 3.268 2.574 2.282 2.115 2.004 1.924 1.864 1.816 1.777 1.716 Lower Range, D 0 0 0 0 0 0.076 0.136 0.184 0.223 0.284 For the given data, the x = inches (round your response to four decimal places). For the given sample size, the Mean Factor (A2)=(round your response to three decimal places). Based on the sampling done, the control limits for 3-sigma x chart are: Upper Control Limit (UCL;) - inches (round your response to four decimal places). Lower Control Limit (LCL;) - inches (round your response to four decimal places). Based on the x-chart, is one or more samples beyond the control limits? For the given data, the R = inches (round your response to four decimal places). For the given sample size, Upper Range (D4)=(round your response to four decimal places). For the given sample size, Lower Range (D3)=(round your response to four decimal places). The control limits for the 3-sigma R-chart are: Upper Control Limit (UCLR) = inches (round your response to four decimal places). Lower Control Limit (LCLR) - inches (round your response to four decimal places). Based on the R-chart, is one or more samples beyond the control limits? =
