Question: This must be completed on both routers only. Create a static routed network that will allow full connectivity for the topology seen in Figures 2

This must be completed on both routers only. Create a static routed network that will allow full connectivity for the topology seen in

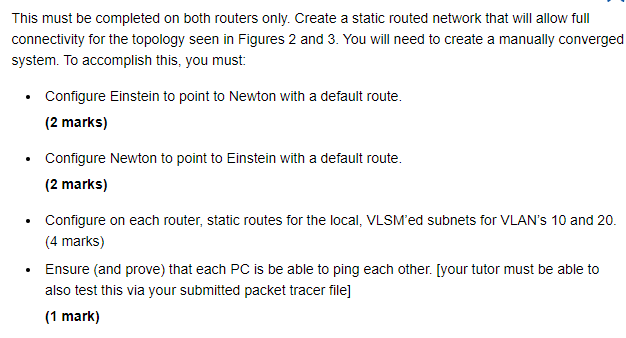

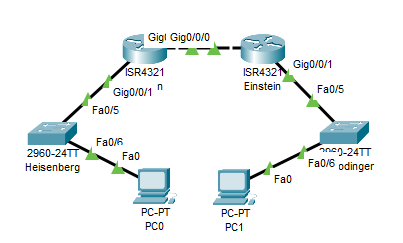

This must be completed on both routers only. Create a static routed network that will allow full connectivity for the topology seen in Figures 2 and 3 . You will need to create a manually converged system. To accomplish this, you must: - Configure Einstein to point to Newton with a default route. (2 marks) - Configure Newton to point to Einstein with a default route. (2 marks) - Configure on each router, static routes for the local, VLSM'ed subnets for VLAN's 10 and 20 . (4 marks) - Ensure (and prove) that each PC is be able to ping each other. [your tutor must be able to also test this via your submitted packet tracer file] (1 mark)

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Databases Questions!

Task 1: Router on a stick You will need to adapt the configuration on both Newton and Einstein and configure the Heisenberg and Schrodinger switches to complete this task. You will need to VLSM the...

VLSM for 8 further subnets on Newton and 64 on Einstein. On Newton: - Create two sub interfaces, for VLANs 10 and 20. - Enable dot1q trunking for each sub interface. (1 mark) - Using VLSM, split...

VLSM for 8 further subnets on Newton and 64 on Einstein . On Newton: - Create two sub interfaces, for VLANs 10 and 20. - Enable dot1q trunking for each sub interface. (1 mark) - Using VLSM, split...

You will need to adapt the configuration on both Newton and Einstein and configure the Heisenberg and Schrodinger switches to complete this task. You will need to VLSM the network, to ensure that...

4 . 2 Task 2 : Static and default routes ( 5 marks ) This must be completed on both routers only. Create a static routed network that will allow full connectivity for the topology seen in Figures 2...

This must be completed on both routers only Create a static routed network that will allow full connectivity for the topology seen in Figures 2 and 3 You will need to create a manually converged...

On Newton: Create two sub interfaces, for VLANs 10 and 20. - Enable dot1q trunking for each sub interface. (1 mark) Using VLSM, split 172.16.0.0/24 into (see above selection method) further...

NEWTON 172.16.0.0/24 EINSTEIN 192.168.0.0/24 This must be completed on both routers only. Create a static routed network that will allow full connectivity for the topology seen in Figures 2 and 3 ....

This must be completed on both routers only. Create a static routed network that will allow full connectivity for the topology seen in Figures 2 and 3. You will need to create a manually converged...
