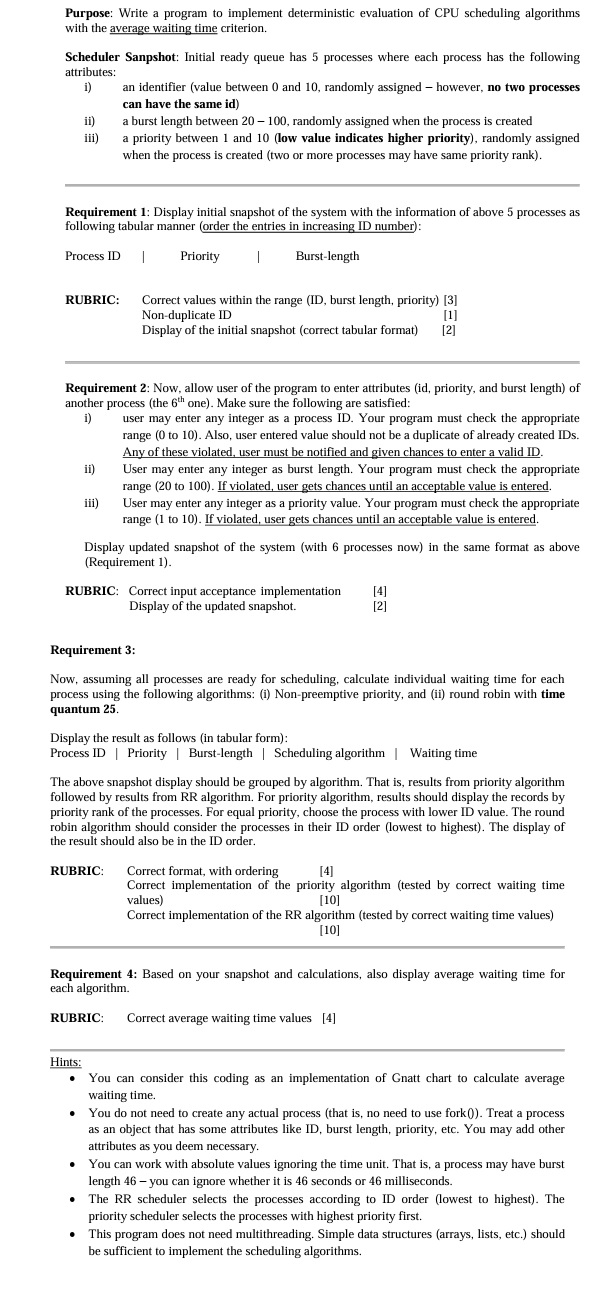

$($This Must be in JAVA$)$

Purpose: Write a program to implement deterministic evaluation of CPU scheduling algorithms

with the average waiting time criterion.

Scheduler Sanpshot: Initial ready queue has $5$ processes where each process has the following

attributes:

i$)$ an identifier $($value between $0$ and $10,$ randomly assigned $-$ however, no two processes

can have the same id$)$

ii$)$ a burst length between $20-100,$ randomly assigned when the process is created

iii$)$ a priority between $1$ and $10($low value indicates higher priority$),$ randomly assigned

when the process is created $($two or more processes may have same priority rank$).$

Requirement $1$: Display initial snapshot of the system with the information of above $5$ processes as

following tabular manner $($order the entries in increasing ID number$)$:

Process ID $|$ Priority $|$ Burst$-$length

RUBRIC: Correct values within the range $($ID$,$ burst length, priority$)[3]$

Non$-$duplicate ID $[1]$

Display of the initial snapshot $($correct tabular format$)[2]$

Requirement $2$: Now, allow user of the program to enter attributes $($id$,$ priority, and burst length$)$ of

another process $($the $6^{th}$ one$).$ Make sure the following are satisfied:

i$)$ user may enter any integer as a process ID$.$ Your program must check the appropriate

range $(0$ to $10).$ Also, user entered value should not be a duplicate of already created IDs.

Any of these violated, user must be notified and given chances to enter a valid ID$.$

ii$)$ User may enter any integer as burst length. Your program must check the appropriate

range $(20$ to $100).$ If violated, user gets chances until an acceptable value is entered.

iii$)$ User may enter any integer as a priority value. Your program must check the appropriate

range $(1$ to $10).$ If violated, user gets chances until an acceptable value is entered.

Display updated snapshot of the system $($with $6$ processes now$)$ in the same format as above

$($Requirement $1).$

RUBRIC: Correct input acceptance implementation

Requirement $3$:

Now, assuming all processes are ready for scheduling, calculate individual waiting time for each

process using the following algorithms: $($i$)$ Non$-$preemptive priority, and $($ii$)$ round robin with time

quantum $25.$

Display the result as follows $($in tabular form$)$:

Process ID $|$ Priority $|$ Burst$-$length $|$ Scheduling algorithm $|$ Waiting time

The above snapshot display should be grouped by algorithm. That is$,$ results from priority algorithm

followed by results from RR algorithm. For priority algorithm, results should display the records by

priority rank of the processes. For equal priority, choose the process with lower ID value. The round

robin algorithm should consider the processes in their ID order $($lowest to highest$).$ The display of

the result should also be in the ID order.

RUBRIC: Correct format, with ordering $[4]$

$[4]$

Correct implementation of the priority algorithm $($tested by correct waiting time

values$)$

$[10]$

Correct implementation of the RR algorithm $($tested by correct waiting time values$)$

$[10]$

Requirement $4$: Based on your snapshot and calculations, also display average waiting time for

each algorithm.

RUBRIC: Correct average waiting time values $[4]$

Hints:

You can consider this coding as an implementation of Gnatt chart to calculate average

waiting time.

You do not need to create any actual process $($that is$,$ no need to use fork$(0).$ Treat a process

as an object that has some attributes like ID$,$ burst length, priority, etc. You may add other

attributes as you deem necessary.

You can work with absolute values ignoring the time unit. That is$,$ a process may have burst

length $46-$ you can ignore whether it is $46$ seconds or $46$ milliseconds.

The RR scheduler selects the processes according to ID order $($lowest to highest$).$ The

priority scheduler selects the processes with highest priority first.

This program does not need multithreading. Simple data structures $($arrays$,$ lists, etc.$)$ should

be sufficient to implement the scheduling algorithms.
