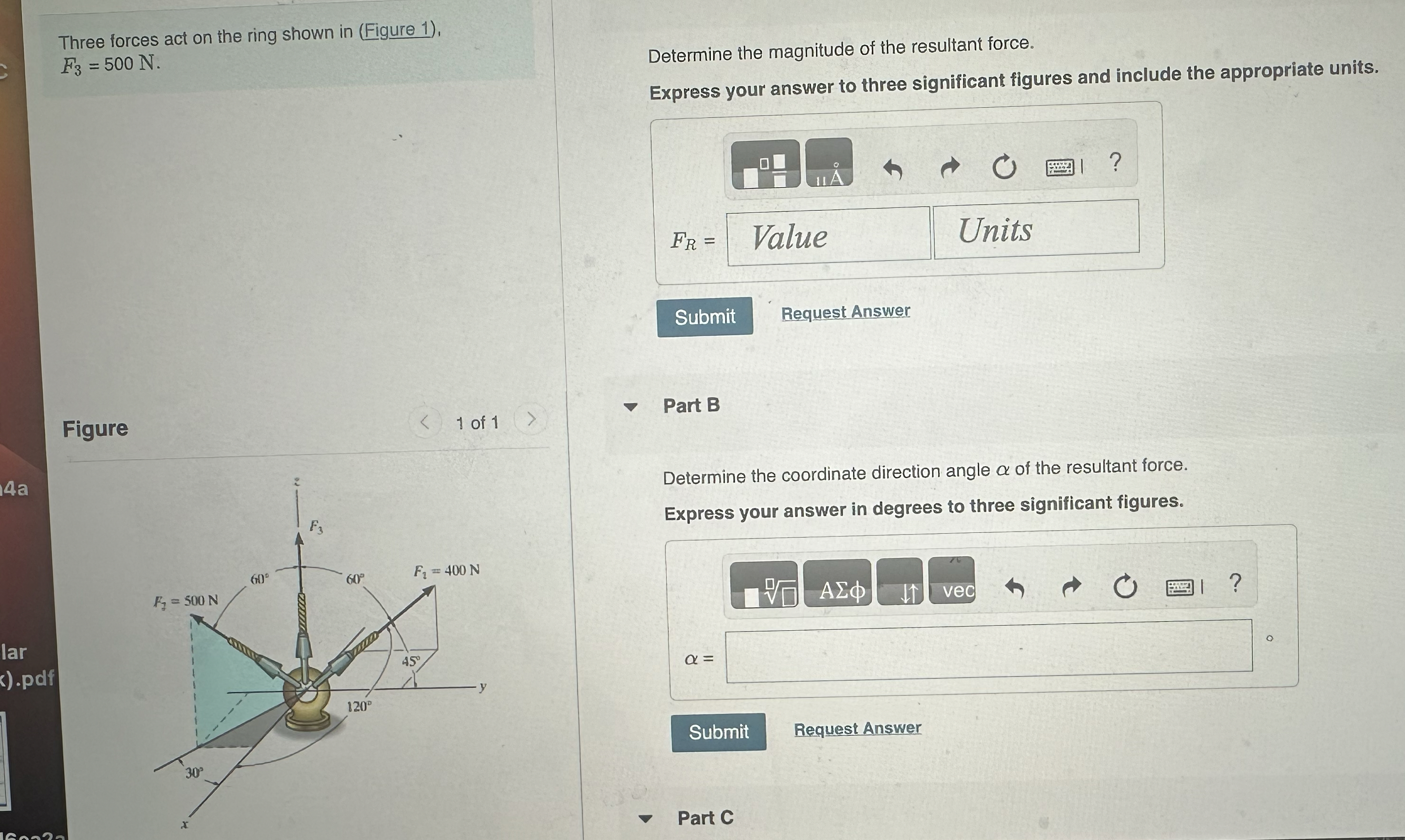

Question: Three forces act on the ring shown in ( Figure 1 ) , F 3 = 5 0 0 N Determine the magnitude of the

Three forces act on the ring shown in (Figure 1),
F3=500N
Determine the magnitude of the resultant force.
Express your answer to three significant figures and include the appropriate units.
FR=
Request Answer
1 of 1
Part B
Figure
4a
Determine the coordinate direction angle of the resultant force.
Express your answer in degrees to three significant figures.
lar
=
k). pdf
Request Answer
Part C
Three forces act on the ring shown in ( Figure 1

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
