Question: Three forces are applied to the bar shown. Determine the normal and shearing stress at point a , and then calculate the principal

Three forces are applied to the bar shown. Determine the normal and shearing stress at point "a", and then calculate the principal stress and maximum shear stress using Mohr's Circle.

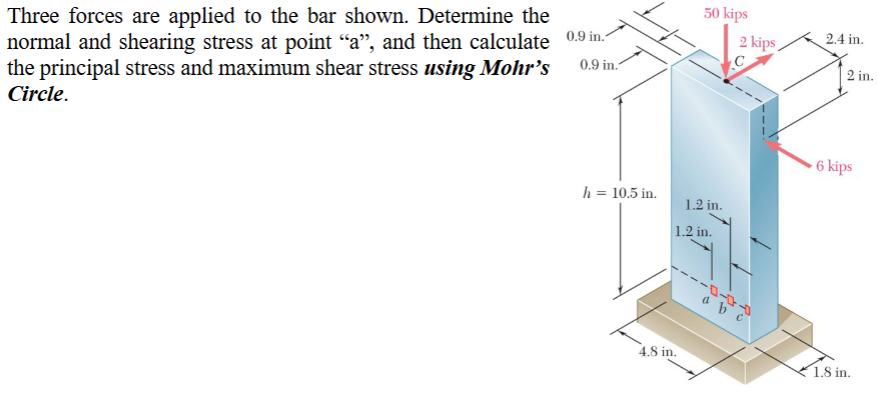

Three forces are applied to the bar shown.

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

Required information Three forces are applied to the bar shown. Take P = 4 2 kips and h = 1 2 i n . Determine the normal and shearing stress at point c . ( Round the final answers to three decimal...

Q:

L-shaped bracket is supported by the wall as shown (gravity neglected). Forces in x and z direction are acting at point A. Force in y direction is acting at point B. Cross-section is 0.2x0.2 m in...

Q:

A hollow cylindrical shaft with an outer diameter of 8 0 mm and an inner diameter of 6 0 mm is subjected to a bending moment of 9 0 0 Nm and a torque of 7 0 0 Nm . Calculate the maximum principal...

Q:

A solid cylindrical shaft with a diameter of 7 0 mm is subjected to a bending moment of 8 0 0 Nm and a torque of 6 0 0 Nm . Calculate the principal stresses, maximum shear stress, and the equivalent...

Q:

The beam has a rectangular cross-section and is subjected to the loadings shown in Figure 3. Points A and B are located just to the left of the 20-kN load. a) Determine the normal and shear stresses...

Q:

A solid cylindrical shaft with a diameter of 7 0 mm is subjected to a bending moment of 8 0 0 Nm and a torque of 6 0 0 Nm . Calculate the principal stresses, maximum shear stress, and the equivalent...

Q:

A hollow cylindrical shaft with an outer diameter of 1 0 0 mm and an inner diameter of 8 0 mm is subjected to a bending moment of 1 2 0 0 Nm and a torque of 1 0 0 0 Nm . Determine the principal...

Q:

1 ) For the beam ( E = 3 0 E 6 psi ) shown determine a . The maximum normal and shear stress b . the normal and shear stress at point B on the beam and F on the cross section. 2 ) For the state of...

Q:

Three forces are applied to the cantilever beam shown. Determine the principal stresses and the maximum shearing stress al poimt H . Deaermine the bending moment about horizontal axis? A ) 3 0 K N =...

Q:

A solid cylindrical shaft with a diameter of 9 0 mm is subjected to a bending moment of 1 0 0 0 Nm and a torque of 8 0 0 Nm . Calculate the principal stresses, maximum shear stress, and von Mises...
