Translate the following Python program into the machine language described in Appendix C. You may assume that the program begins at address 00, and the x is stored at memory cell whose address is XY. x= 0

while (x

x=x+ 1

part b

Translate the high-level statement if (X == 0): Z=Y+ W else: Z=Y+ X into the machine language of Appendix C, assuming that W, X, Y, and Z are all values represented in twos complement notation, each using one byte of memory.

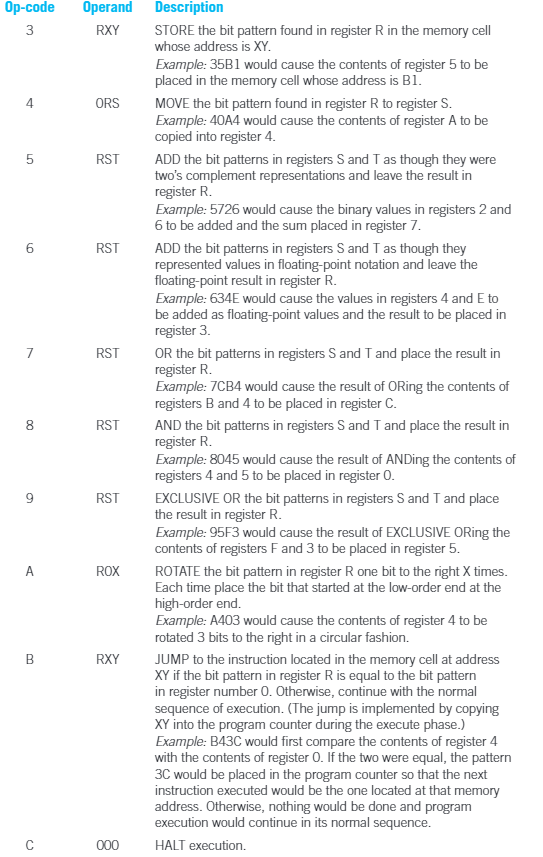

APPENDIX C BELOW

Op-code Operand Description RXY LOAD the register R with the bit pattern found in the memory cell whose address is XY. Example: 14A3 would cause the contents of the memory cell located at address A3 to be placed in register 4 LOAD the register R with the bit pattern XY. Example: 20A3 would cause the value A3 to be placed in register 0. 2 RXY
