Question: Tutorial Questions Applying a unit step input to the following first order system: Find the time constant. Determine the settling time to a 9 8

Tutorial Questions

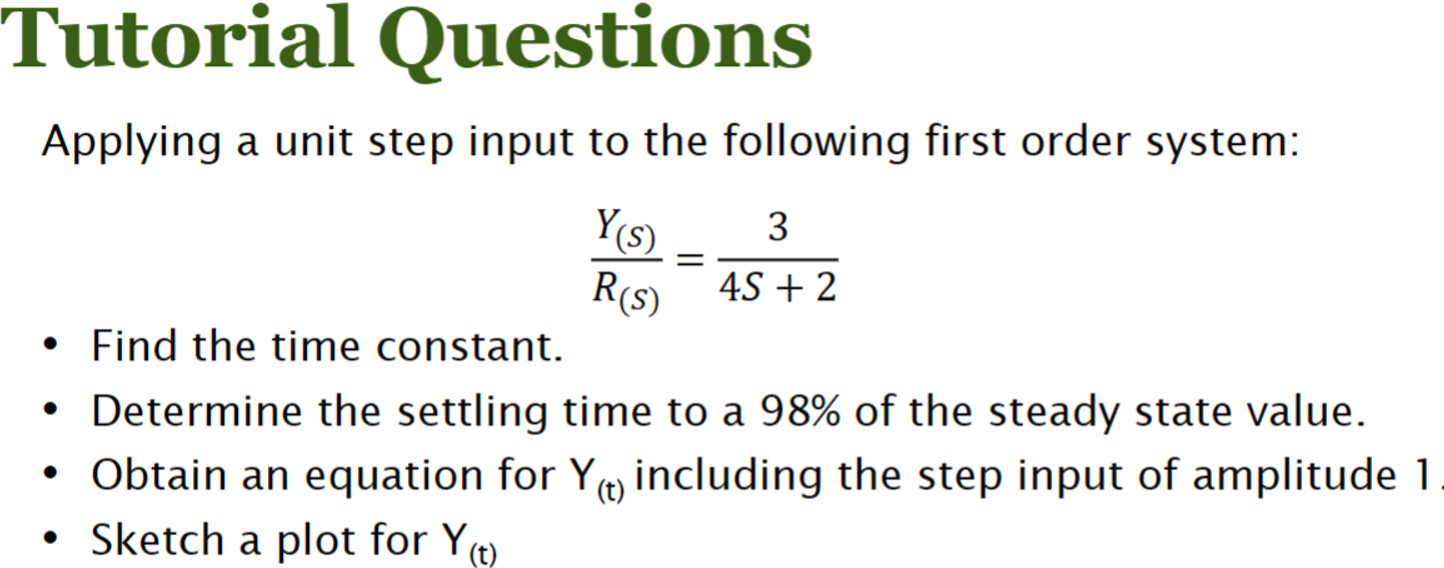

Applying a unit step input to the following first order system:
Find the time constant.
Determine the settling time to a 98% of the steady state value.
Obtain an equation for Y(t) including the step input of amplitude 1
Sketch a plot for Y(t)
Tutorial Questions Applying a unit step input to the following first

Step by Step Solution

There are 3 Steps involved in it
