Question: Two cables AB and AC are attached to hook A. The internal force in each cable is given in the figure. a) Determine the magnitude

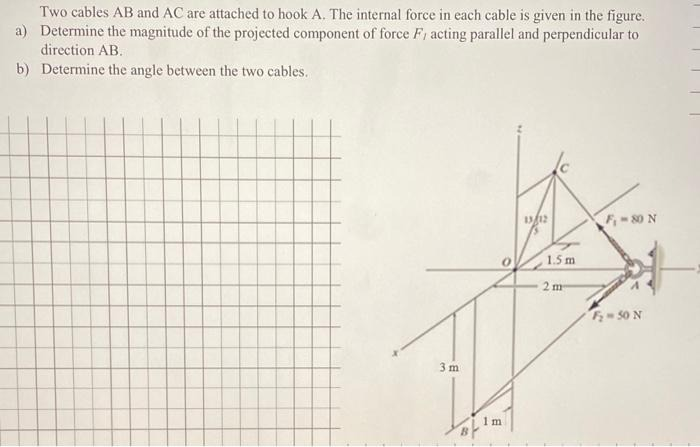

Two cables AB and AC are attached to hook A. The internal force in each cable is given in the figure. a) Determine the magnitude of the projected component of force F, acting parallel and perpendicular to direction AB. b) Determine the angle between the two cables. C 1.5 m 2 m 3 m 1 mTwo cables AB and AC are attached to hook A. The internal force in each cable is given in the figure. a) Determine the magnitude of the projected component of force F, acting parallel and perpendicular to direction AB. b) Determine the angle between the two cables. C 1.5 m 2 m 3 m 1 m

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Physics Questions!

be original and need typed soltion Two cables AB and AC are attached to hook A. The internal force in each cable is given in the figure. a) Determine the magnitude of the projected component of force...

Two cables ( A B and A C ) act on a hook at point A as shown in Figure 2 . 3 . a ) Determine the position vectors for the internal forces labeled F B and F C ( Marks 2 ) b ) Express forces F B and F...

Two cables ( AB and AC ) act on a hook at point A as shown in Figure 2 . 3 . Figure 2 . 3 a ) Determine the position vectors for the internal forces labeled F B and F C ( Marks 2 ) b ) Express forces...

For the tree of Prob. 2.73, knowing that the tension in cable AC is 980 lb and that the resultant of the forces exerted at A by cables AB and AC lies in the yz plane, determine (a) The tension in AB,...

see attach, d0 ur best. Situation 4 - The guy cables AB and AC are attached to the top of the transmission tower. The tension in cable AB is 8 kN. 10. Determine the required tension T 30 m in cable...

For the tree of Prob. 2.73, knowing that the tension in cable AB is 760 lb and that the resultant of the forces exerted at A by cables AB and AC lies in the yz plane, determine (a) The tension in AC,...

The guy cables A B and A C are attached to the top of the transmisaion tower. The tension in cable A B is 8 kN . Determine the required tension T in cable A C such that the net effect of the two...

The guy cables A B and A C are attached to the top of the transmission tower. The tension in cable A B is 8 kN . Determine the required tension T in cable A C such that the net effect of the two...

I NEED HELP FIGURING IT OUT THE PROCESS TO GET TO THE CORRECT ANSWER PLEASE! A small ball having weight P is suspended by two cables A B and A C in a vertical plane. Then cable A B is cut and the...

Hey tutors, kindly help me with this exam prep exercise . Explanation need not be too detailed 26. [-/2 Points] DETAILS SERCP11 3.2.OP.009. MY NOTES ASK YOUR TEACHER PRACTICE ANOTHER A mountain lion...
