Question: Two forces are applied as shown to a hook, where P is 7 2 0 N and Q is 1 , 0 2 0 N

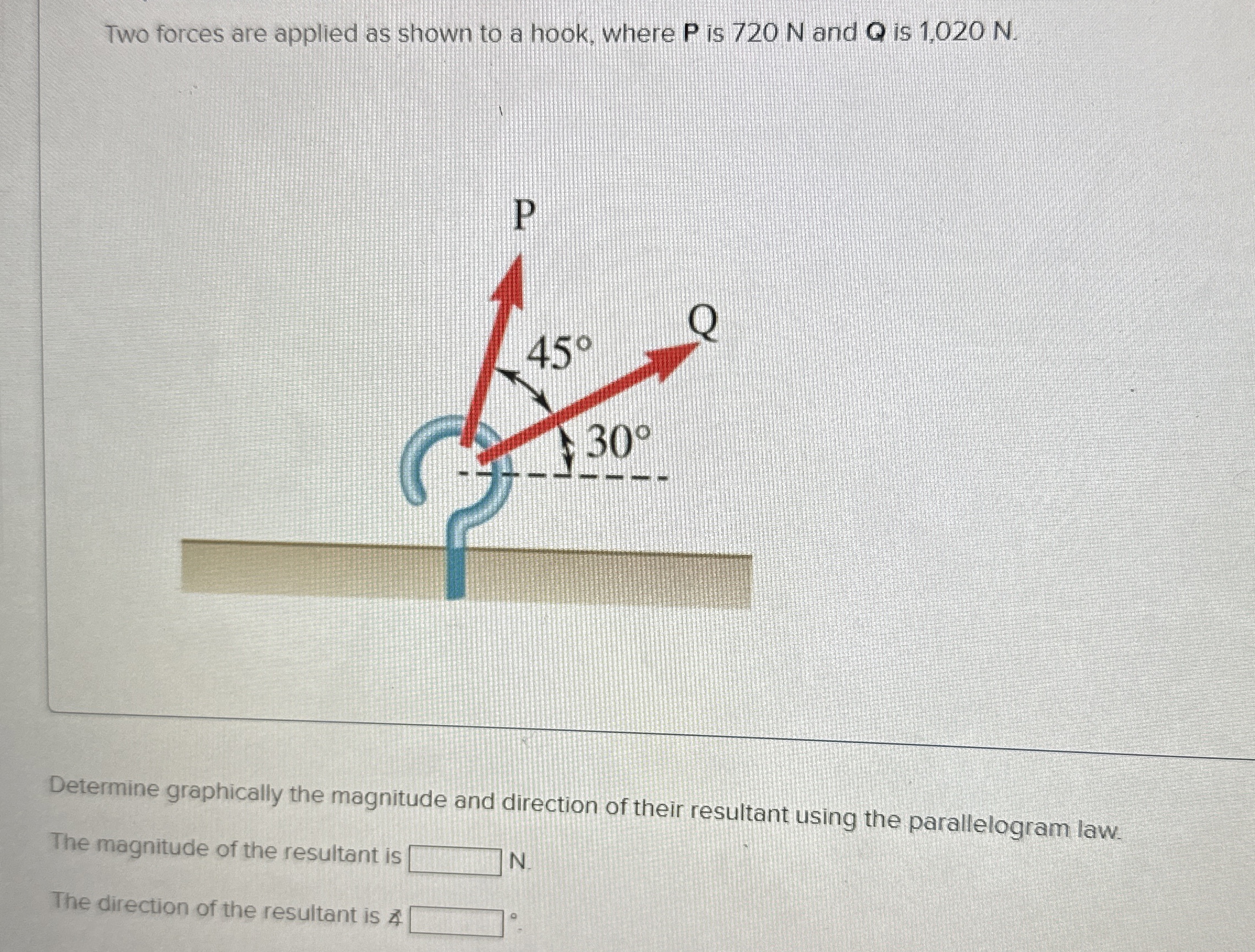

Two forces are applied as shown to a hook, where P is 720 N and Q is 1,020N.
Determine graphically the magnitude and direction of their resultant using the parallelogram law.
The magnitude of the resultant is
N
The direction of the resultant is
Two forces are applied as shown to a hook, where

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
