Question: Two forces are applied as shown to a hook, where P is 6 8 0 N and Q is 9 8 0 N . Determine

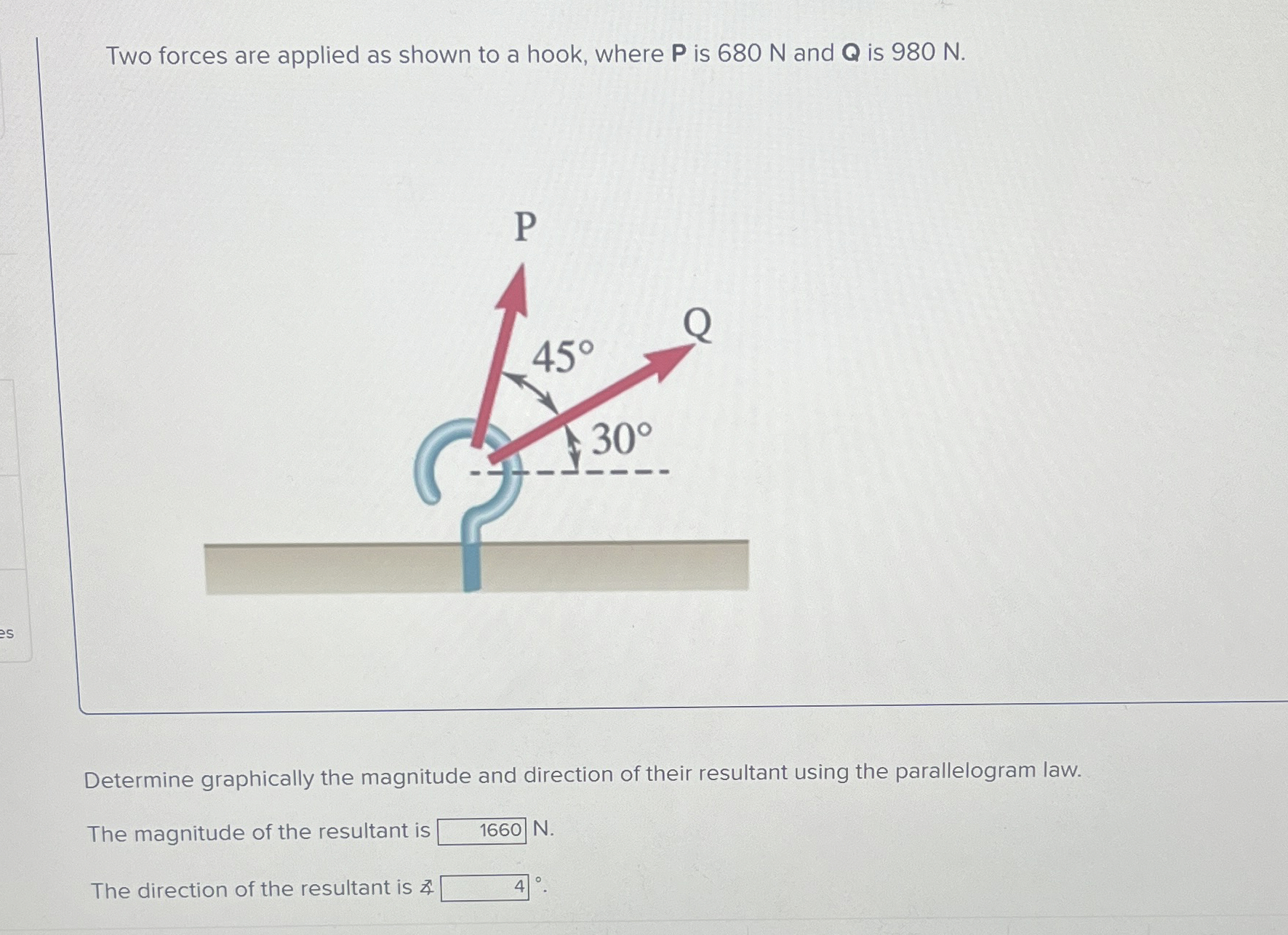

Two forces are applied as shown to a hook, where P is 680 N and Q is 980 N .
Determine graphically the magnitude and direction of their resultant using the parallelogram law.
The magnitude of the resultant is N.
The direction of the resultant is
Two forces are applied as shown to a hook, where

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
