Question: Two forces are applied at a point in a plane as shown in Fig. P 4 - 4 . Determine:Knowing that cable AD exerts a

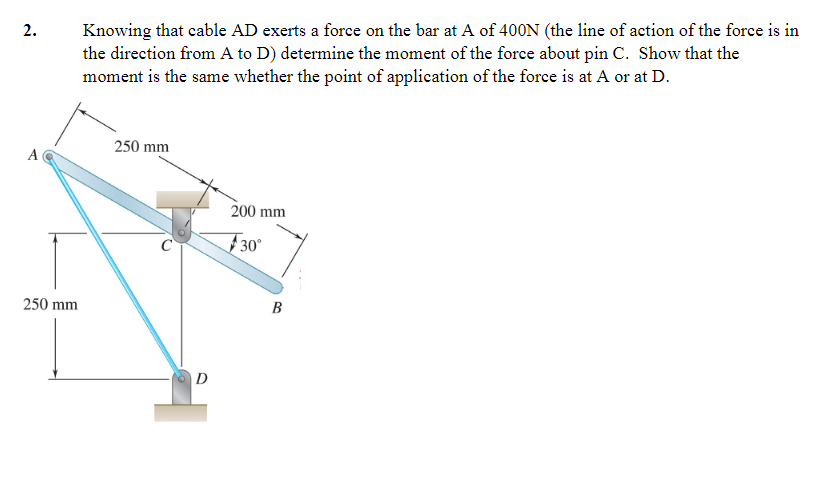

Two forces are applied at a point in a plane as shown in Fig. P4-4. Determine:Knowing that cable AD exerts a force on the bar at A of 400 N (the line of action of the force is in
the direction from A to D ) determine the moment of the force about pin C. Show that the
moment is the same whether the point of application of the force is at A or at D.
a. The moments of force F1 about points B and C .
b. The moments of force F2 about points A and C .
Two forces are applied at a point in a plane as

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

Two forces are applied at a point in a plane as shown in Fig. P 4 - 4 . Determine: a . The moments of force F 1 about points B and C . b . The moments of force F 2 about points A and C .
