Question: Two rectangular plates are welded together to form the assembly shown. The assembly is supported by ball - and - socket joints at B and

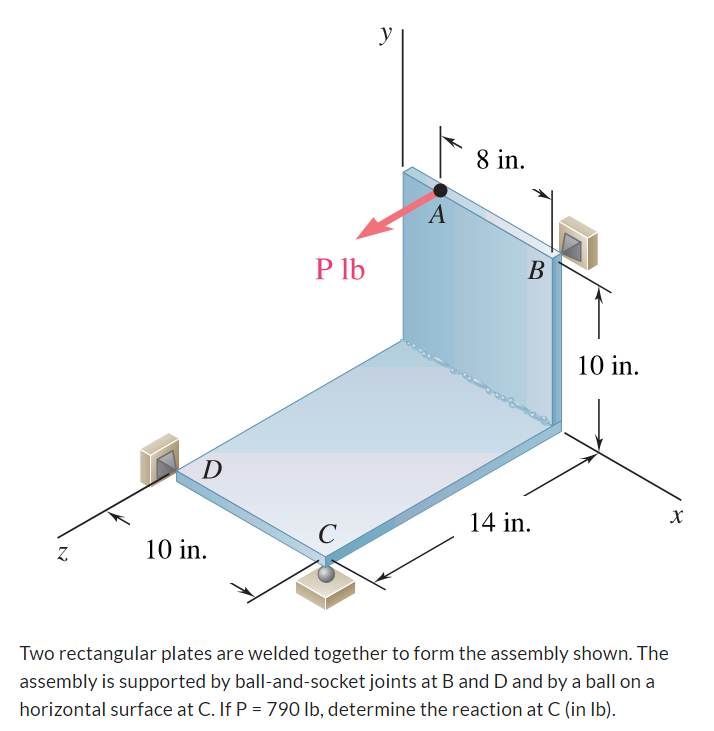

Two rectangular plates are welded together to form the assembly shown. The
assembly is supported by ball-and-socket joints at B and D and by a ball on a
horizontal surface at C . If P=790lb, determine the reaction at C (in lb).
Two rectangular plates are welded together to

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
