Question: Two solid cylindrical rods A B and B C are welded together at B and loaded as shown. Determine the magnitude of the force P

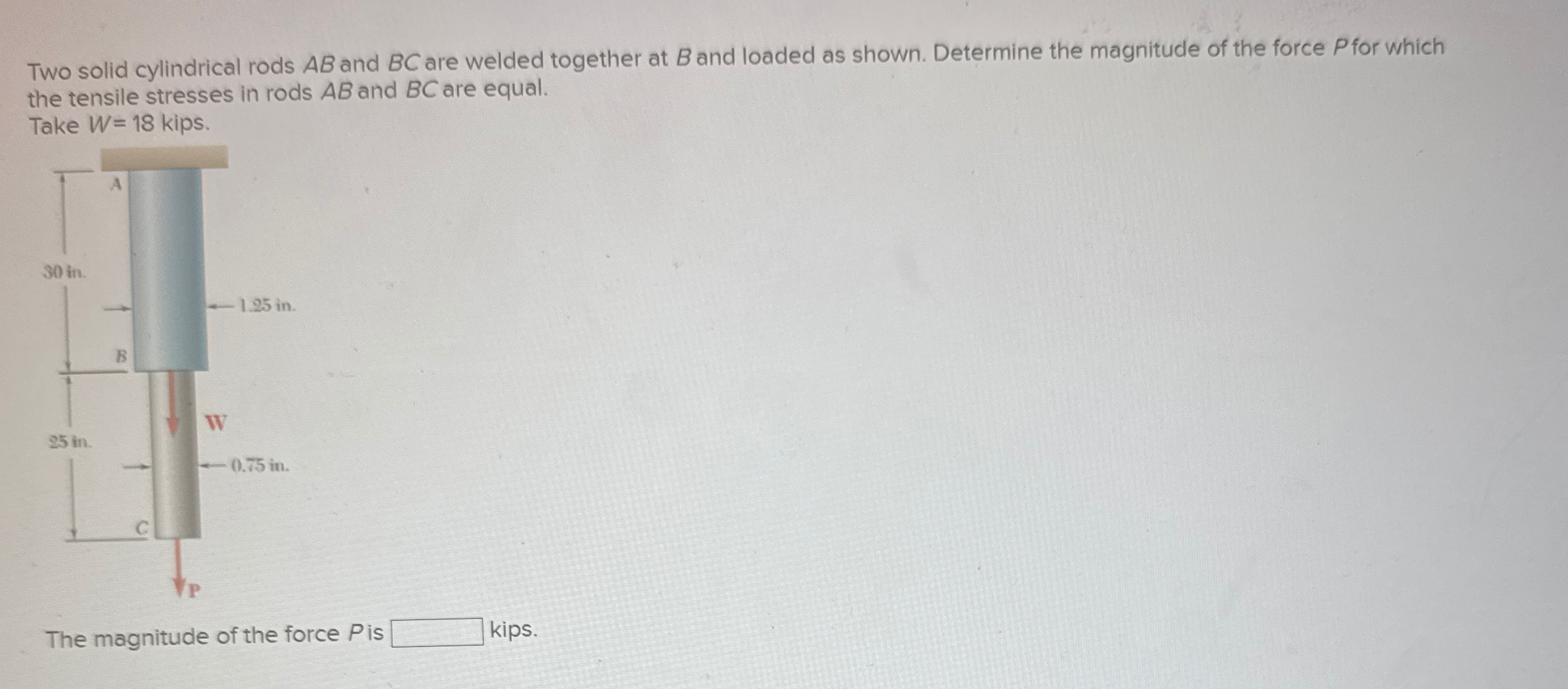

Two solid cylindrical rods AB and BC are welded together at B and loaded as shown. Determine the magnitude of the force P for which the tensile stresses in rods AB and BC are equal.
Take W=18 kins.
The magnitude of the force P is ] kips.
Two solid cylindrical rods A B and B C are welded

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
