Question: Two solid cylindrical rods A B and B C are welded together at B and loaded as shown. Knowing that P = 4 3 kips,

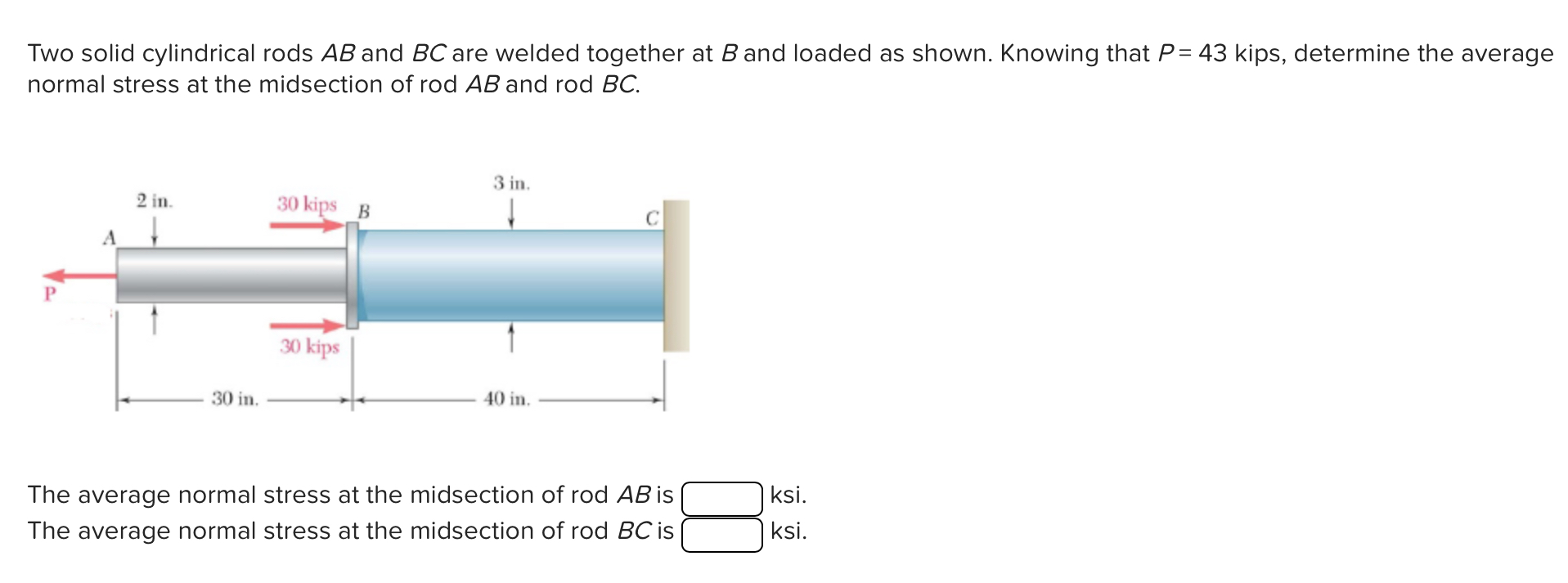

Two solid cylindrical rods AB and BC are welded together at B and loaded as shown. Knowing that P=43 kips, determine the average
normal stress at the midsection of rodAB and rodBC.
The average normal stress at the midsection of rod AB is
ksi.
The average normal stress at the midsection of rodBC is
ksi.
Two solid cylindrical rods A B and B C are welded

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
