Question: Two solid cylindrical rods are joined at B and loaded as shown. Rod A B is made of steel ) = ( 2 9 1

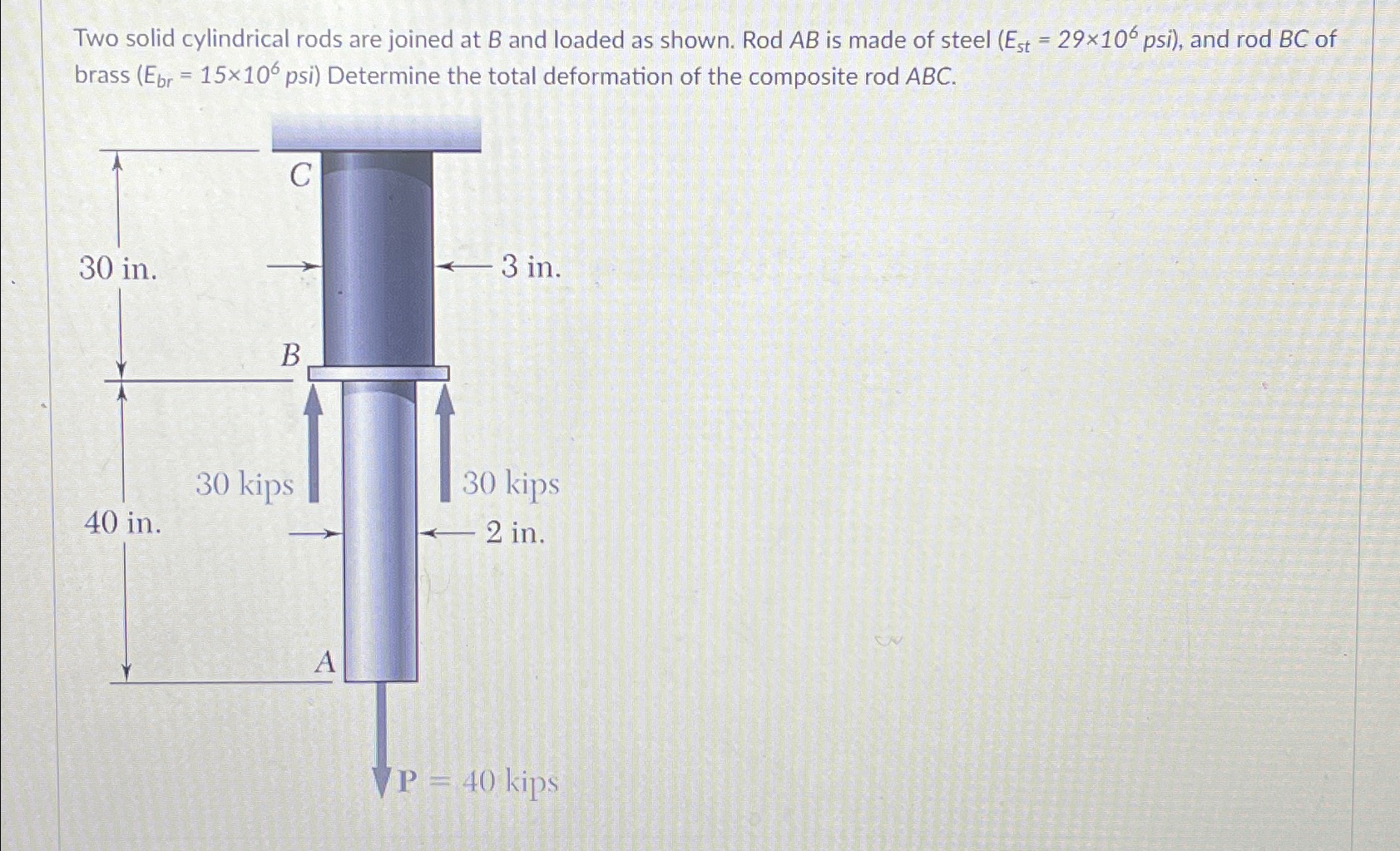

Two solid cylindrical rods are joined at B and loaded as shown. Rod AB is made of steel )=(29106, and rod BC of brass ((:Ebr=15106} Determine the total deformation of the composite rod ABC.
P=40 kips
Two solid cylindrical rods are joined at B and

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!

Q:

Two solid cylindrical rods are joined at B and loaded as shown. Rod AB is made of steel (E=200 GPa), and rod BC of brass (E=100 GPa). Determine (a) the total deformation of the composite rod ABC, (b)...
