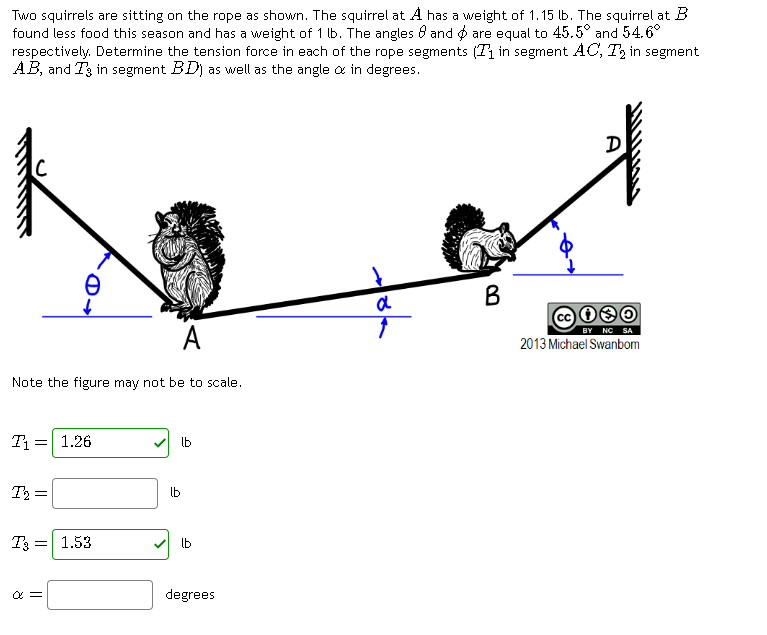

Two squirrels are sitting on the rope as shown. The squirrel at A has a weight of $1\mathrm{.}15$ lb $.$ The squirrel at $B$

found less food this season and has a weight of $1$ lb $.$ The angles $$ and $$ are equal to $45\mathrm{.}5$ and $54\mathrm{.}6$

respectively. Determine the tension force in each of the rope segments $(T_1$ in segment $AC,T_2$ in segment

$AB,$ and $T_3$ in segment $BD)$ as well as the angle $$ in degrees.

Note the figure may not be to scale.

$T_1=|$

Ib

$T_2=$

Ib

$T_3=|$

Ib

$=$

degrees
