Question: Two wave pulses are generated at t = 0 s and travel towards each other at a speed of 1 m s , as in

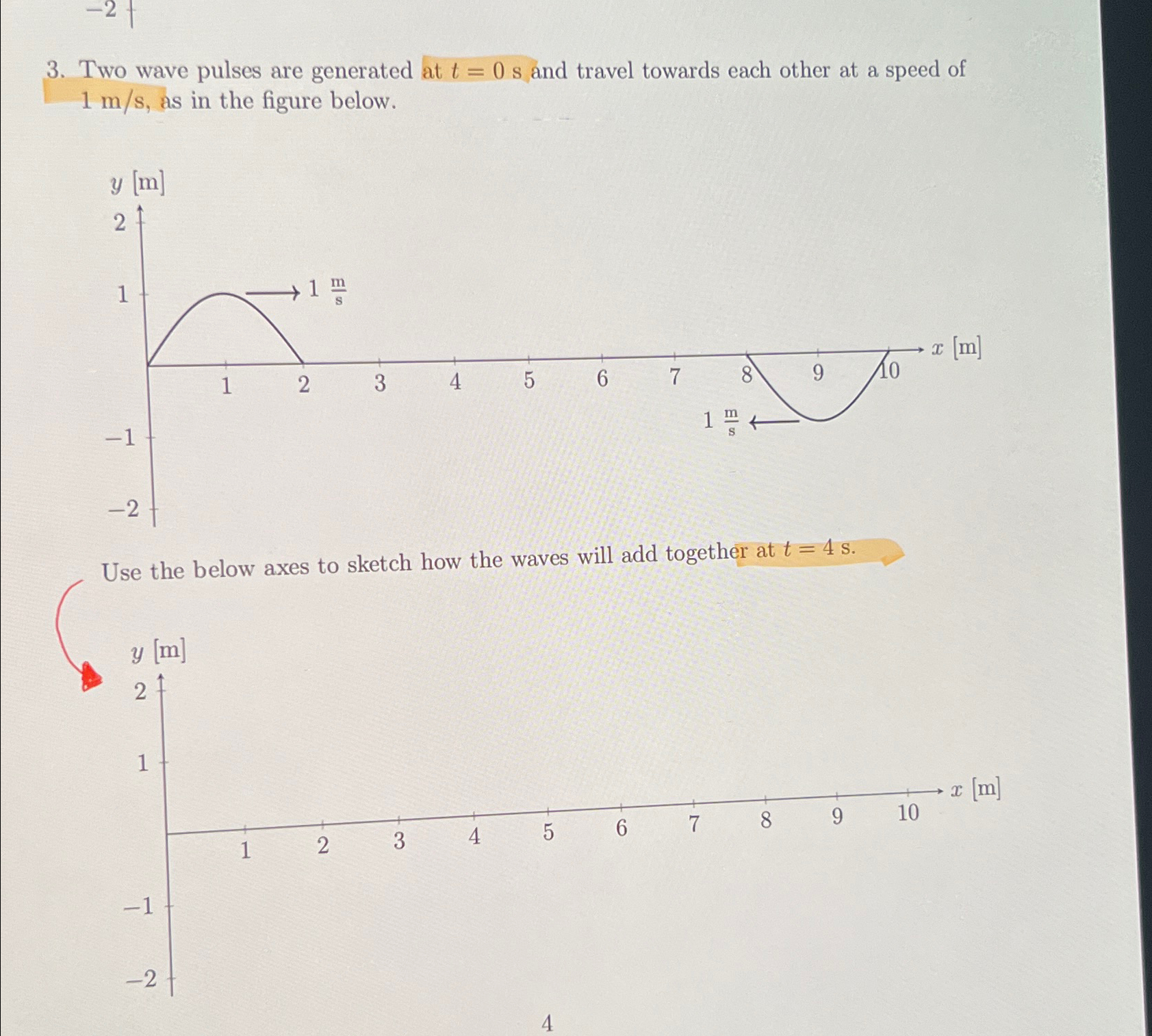

Two wave pulses are generated at t=0s and travel towards each other at a speed of 1ms, as in the figure below.
Use the below axes to sketch how the waves will add together at t=4s.
4
Two wave pulses are generated at t = 0 s and

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
