Question: Unit Impulse and Step Response Given the system transfer function: G(s) = Y(s)/R(s) = 104/S^2 + 8S + 52, 0 lessthanorequalto t lessthanorequalto 3 a)

 Unit Impulse and Step Response Given the system transfer function: G(s)

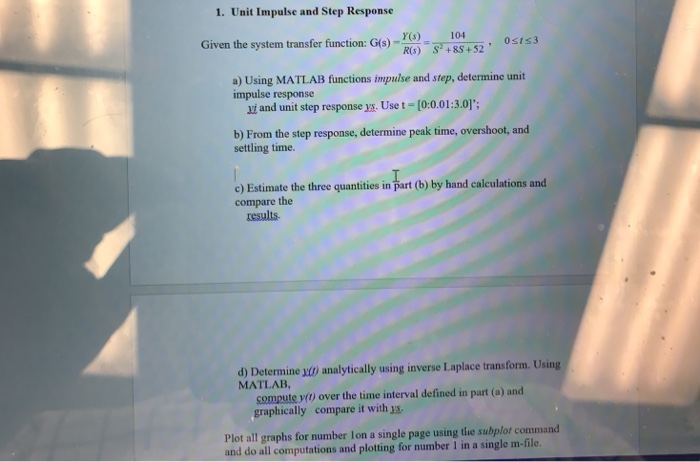

Unit Impulse and Step Response Given the system transfer function: G(s) = Y(s)/R(s) = 104/S^2 + 8S + 52, 0 lessthanorequalto t lessthanorequalto 3 a) Using MATLAB functions impulse and step, determine unit impulse response yi and unit step response ys. Use t = [0:0.01:3.0]'; b) From the step response, determine peak time, overshoot, and settling time. c) Estimate the three quantities in part (b) by hand calculations and compare the results. d) Determine y(t) analytically using inverse Laplace transform. Using MATLAB, compute y(t) over the time interval defined in part (a) and graphically compare it with vs. Plot all graphs for number 1 on a single page using the subplot command and do all computations and plotting for number 1 in a single m-file
