Question: Unsure what I did wrong Partial Question 3 1 3 pts Consider the following sets of secret operations. For each set of operations, determine if

Unsure what I did wrong
Partial
Question 3
13 pts

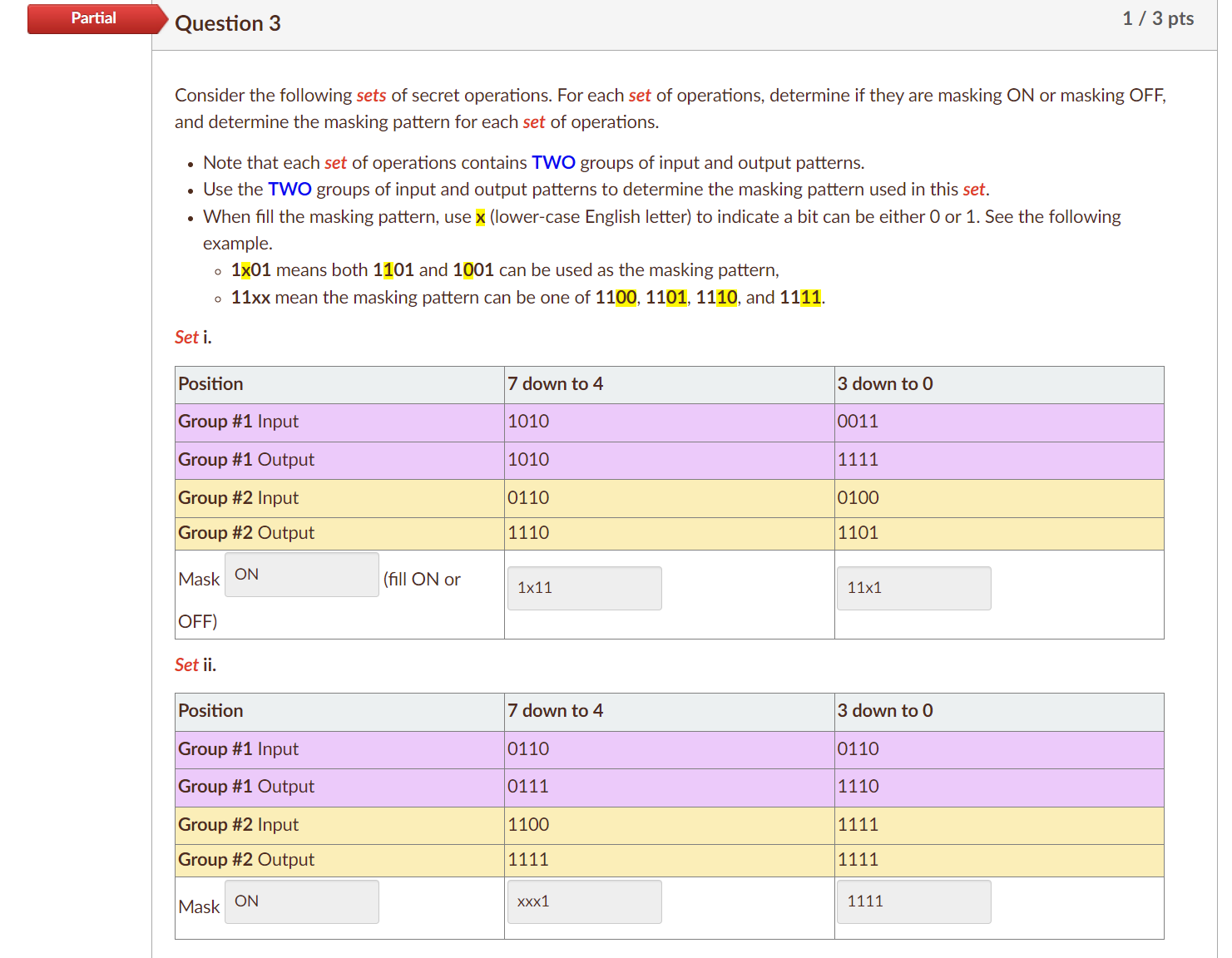

Consider the following sets of secret operations. For each set of operations, determine if they are masking ON or masking OFF, and determine the masking pattern for each set of operations.
Note that each set of operations contains TWO groups of input and output patterns.
Use the TWO groups of input and output patterns to determine the masking pattern used in this set.
When fill the masking pattern, use x(lower-case English letter) to indicate a bit can be either 0 or 1. See the following example.
1x01 means both 1101 and 1001 can be used as the masking pattern,
11xx mean the masking pattern can be one of 1100,1101,1110, and 1111.
Set i.
\table[[Position,7 down to 4,3 down to 0],[Group #1 Input,1010,0011],[Group #1 Output,1010,1111],[Group #2 Input,0110,0100],[Group #2 Output,1110,1101],[Mask (fill ON or,1\times 11,11\times 1],[OFF),,]]
Set ii.
\table[[Position,7 down to 4,3 down to 0],[Group #1 Input,0110,0110],[Group #1 Output,0111,1110],[Group #2 Input,1100,1111],[Group #2 Output,1111,1111],[Mas,\times x1,1111]]
